Generate and Send Music Using Vertex AI and RCS

Introduction

In this blog post, we’ll take a description of a user’s musical taste sent via RCS message, pass it into Google’s Vertex AI Lyria model to generate a track, and send the result directly to their phone as a playable RCS Rich Card using the Vonage Messages API.

The complete code for this project is available on GitHub. RCS Example

Prerequisites

• A registered RCS Business Messaging (RBM) agent

• A phone with RCS capabilities for testing

• Node.js 14+

• Google Cloud Project with Vertex AI enabled

• Authenticated Google Cloud credentials

• Vonage API Account

  To complete this tutorial, you will need a Vonage API account. If you don’t have one already, you can sign up today and start building with free credit. Once you have an account, you can find your API Key and API Secret at the top of the Vonage API Dashboard.



  Ready to start building?

  Experience seamless connectivity, real-time messaging, and crystal-clear voice and video calls—all at your fingertips.

Context

Lyria is a generative audio model hosted on Vertex AI. For this blog post, given a text prompt such as “warm lofi piano, vinyl crackle, 85 BPM,” it creates an MP4 video with a static cover image that plays inline on the phone. Once we have the MP4 ready, we send it back inside a Rich Card using the custom message type of the Vonage Messages API. You can check all the RCS Messaging Supported Types.

Set Up the Application

Start by creating a new Vonage application in the developer dashboard.

When setting up the application, please make sure that you enable the Messages capability and select RCS as the channel. You will later configure the webhook URLs that handle inbound and status events.

To give RCS a way to fetch media from your local machine, install and run ngrok to expose your server publicly.

In a separate terminal, run ngrok http 3000 and copy the HTTPS forwarding URL that appears.

Back in the Vonage dashboard, set your inbound webhook to https://<ngrok>/webhooks/inbound and your status webhook to https://<ngrok>/webhooks/status.

Install Dependencies

We have to run npm install from within your terminal or prompt command to install the following dependencies:

dotenv, @vonage/server-sdk, @vonage/messages, google-auth-library, node-fetch, and ffmpeg-static that are listed in your package.json file.

Note: You can learn more about each dependency by clicking on it and reading its description on NPM.

Create a .env File

You’ll need a few environment variables for this project. Add the following variables below to a .env file you have to create and populate.

GOOGLE_CLOUD_PROJECT_ID=yourProjectId

GOOGLE_CLOUD_LOCATION=us-central1

GOOGLE_APPLICATION_CREDENTIALS=./service-account.json

VONAGE_APPLICATION_ID=your-vonage-app-id

VONAGE_PRIVATE_KEY=./private.key

RCS_SENDER_ID=your-rbm-agent-id

PHONE_NUMBER=447XXXXXXXXX

PORT=3000

PUBLIC_BASE_URL=https://your-ngrok-url

How It Works

You initiate the conversation because users cannot start a new RCS chat on their own. By visiting a URL such as https://<ngrok>/test?q=dark%20synthwave, your server generates music with Lyria, converts it to an MP4 format, hosts it on the /output endpoint, and then sends an initial Rich Card to your RCS-enabled phone device.

After that, the user can reply with new prompts. The inbound webhook catches each reply, passes it to Lyria, converts it to an MP4 file, and returns it as a new Rich Card with the track title and description.

The complete JavaScript implementation is available in index.js.

Run the Server

Ensure that ngrok is running, your webhooks are configured, and your environment variables are set. Start the server with node index.js.

Open the test URL in your browser, for example, in which you’re passing the query "dark synthwave with pulsing bass" https://<ngrok>/test?q=dark%20synthwave%20with%20pulsing%20bass.

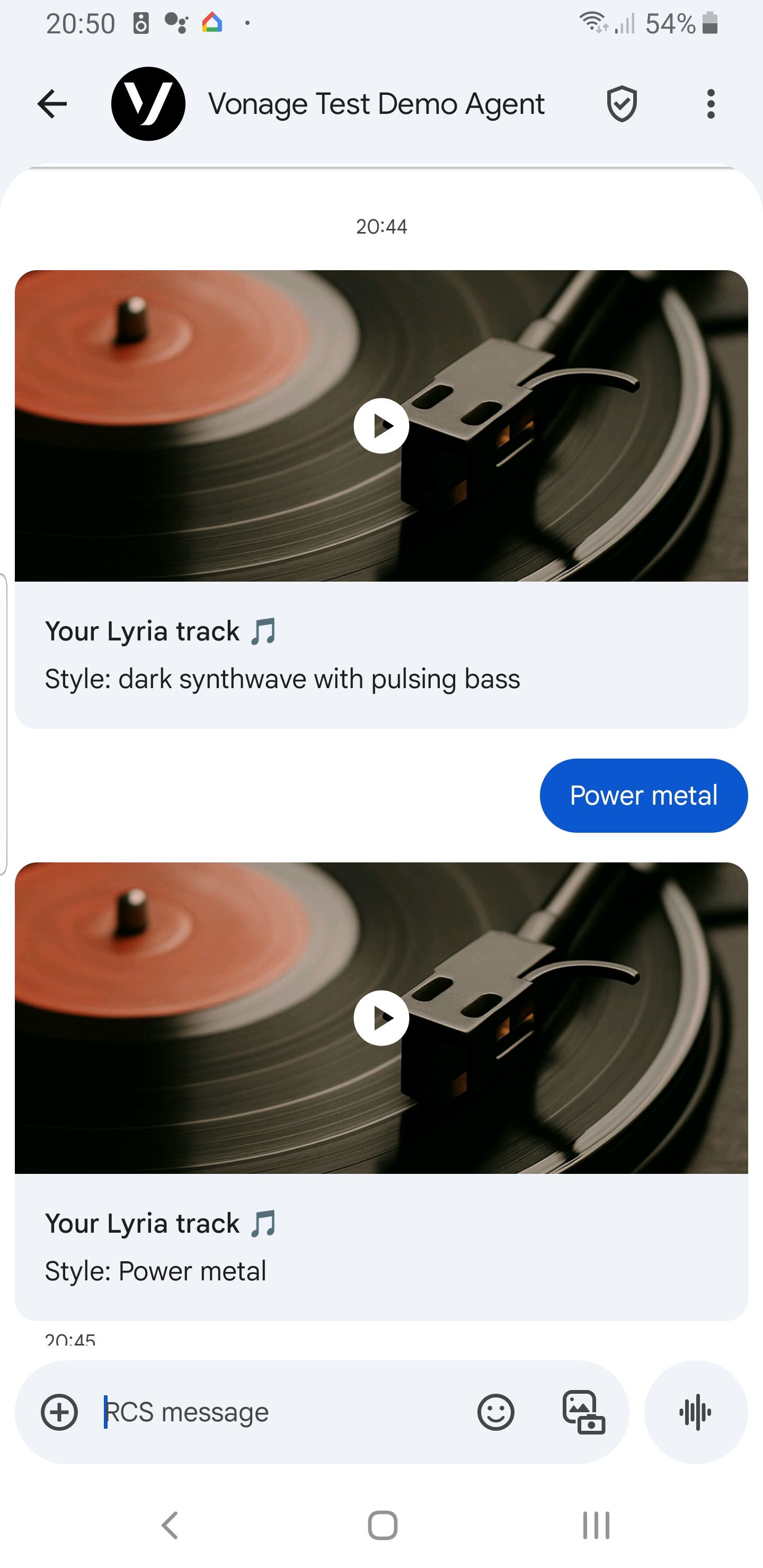

The server will send the first Rich Card to your RCS-enabled device. You can then reply directly in the chat with something like “lofi piano with rain,” and you will receive another Rich Card with a newly generated track.

Send Audio as a File

We’ve used RCS Rich Cards in this blog post; it makes a lot of sense, as you can play the file from it on your phone. If you would prefer to skip Rich Cards and send the generated audio as a file attachment, you can. I covered that in a separate blog post on sending files with RCS.

Conclusion

You did it! In this blog post, you saw how to request music generation via RCS conversations using Lyria and the Vonage Messages API.
