Today we will build an iOS application using Flutter and utilize Vonage Client SDK to make a call from a mobile application to the phone using Vonage Conversation API. The application will have 3 screens (3 UI states):

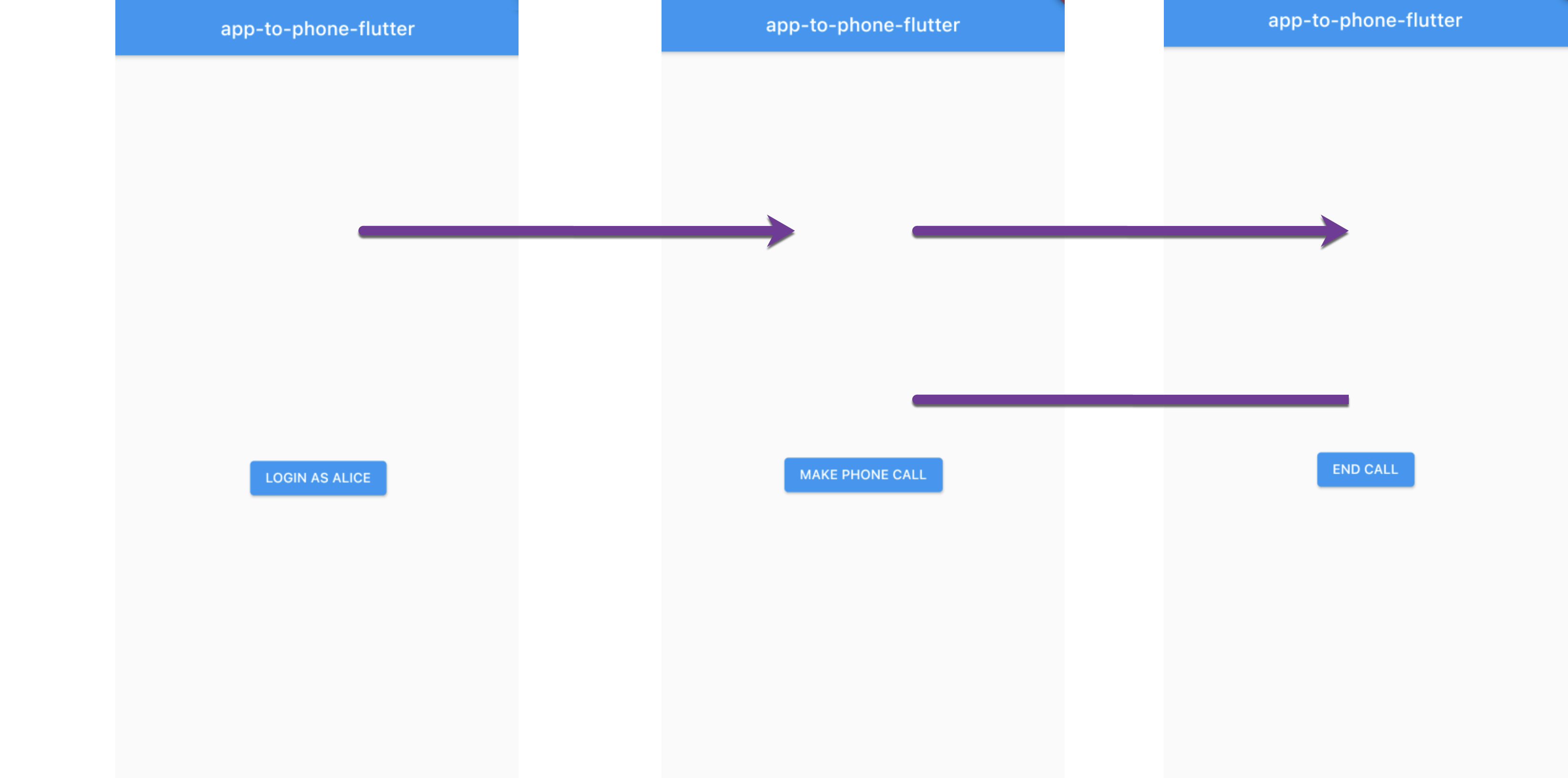

UI states: logon, make a call, and end call
The source code for our Flutter iOS application is available on GitHub.
Before we begin building the Flutter application for the iOS device, we'll need to prepare with the following prerequisites:
Create a Call Control Object (NCCO)
Install the
Vonage CLI(previouslyNexmo CLI)Setup the
Vonage applicationInstall the
Flutter SDKCreate the
Flutterproject
A Call Control Object (NCCO) is a JSON array that we use to control the flow of a Voice API call.
The NCCO needs to be public and accessible by the internet. To accomplish this, in this tutorial we'll be using GitHub Gist which provides a convenient way to host the configuration. Let's add a new gist:
Go to https://gist.github.com/ (we have to be logged into Github)
Create a new gist with
ncco.jsonas the filenameCopy and paste the following
JSONobject into the gist:
[
{
"action": "talk",
"text": "Please wait while we connect you."
},
{
"action": "connect",
"endpoint": [
{
"type": "phone",
"number": "PHONE_NUMBER"
}
]
}
]Replace
PHONE_NUMBERwith your phone number (Vonage numbers are in E.164 format,+and-are not valid. Make sure to specify the country code when entering the number, for example, US: 14155550100 and UK: 447700900001)Click the
Create secret gistbuttonClick the
RawbuttonTake note of the URL shown in the browser, we will be using it in the next step
The Vonage CLI allows us to carry out many operations using the command line. If we want to carry out tasks such as creating applications, creating conversations, purchasing Vonage numbers, and so on, we will need to install the Vonage CLI.
Vonage CLI requires Node.js, so we will need to install Node.js first.
To install the Beta version of the CLI with npm, run this command:
npm install nexmo-cli@beta -gSet up the Vonage CLI to use the Vonage API Key and API Secret. We can get these from the settings page in the Dashboard.
Run the following command in the terminal, while replacing API_KEY and API_SECRET with values from the Dashboard:
nexmo setup API_KEY API_SECRET
Create the project directory. Run the following command in the terminal:
mkdir vonage-tutorialChange into the project directory:
cd vonage-tutorialCreate a Vonage application by copying and pasting the command below into the terminal. Make sure to change the value of
--voice-answer-urlargument by replacingGIST-URLwith the gist URL from the previous step.
nexmo app:create "App to Phone Tutorial" --capabilities=voice --keyfile=private.key --voice-event-url=https://example.com/ --voice-answer-url=GIST-URLMake a note of the Application ID that is echoed in the terminal when the application is created.
NOTE: A hidden file named
.nexmo-appis created in the project directory and contains the newly createdVonage Application IDand the private key. A private key file namedprivate.keyis also created in the current folder.
Each participant is represented by a User object and must be authenticated by the Client SDK. In a production application, we would typically store this user information in a database.
Execute the following command to create a user called Alice:
nexmo user:create name="Alice"
The JWT is used to authenticate the user. Execute the following command in the terminal to generate a JWT for the user Alice. In the following command replace the APPLICATION_ID with the ID of the application:
nexmo jwt:generate sub=Alice exp=$(($(date +%s)+86400)) acl='{"paths":{"/*/users/**":{},"/*/conversations/**":{},"/*/sessions/**":{},"/*/devices/**":{},"/*/image/**":{},"/*/media/**":{},"/*/applications/**":{},"/*/push/**":{},"/*/knocking/**":{},"/*/legs/**":{}}}' application_id=APPLICATION_IDThe command above sets the expiry of the JWT to one day from now, which is the maximum.
Make a note of the JWT we generated for Alice.
NOTE: In a production environment, the application should expose an endpoint that generates a
JWTfor each client request.
Open AppStore and install Xcode.
Download and install Flutter SDK.
This step will vary on MacOS, Win, and Linux, but in general, it boils down to downloading Flutter SDK for a given OS, extracting the Flutter SDK file, and adding the sdk\bin folder to the system PATH variable. Detailed instruction for all platforms can be found here.
Fortunately, Flutter comes with a tool that allows us to verify if SDK and all required "components" are present and configured correctly. Run this command:
flutter doctorFlutter Doctor will verify if Flutter SDK is installed and other components are installed and configured correctly.
We will create a Flutter project using the terminal:
flutter create app_to_phone_flutterThe above command creates app_to_phone_flutter folder containing the Flutter project.
Flutterproject containsiosfolder, which contains theiOSproject;androidfolder containing theAndroidproject; andwebfolder containingwebproject.
Open the pubspec.yaml file, and add permission_handler dependency (just below sdk: flutter):
dependencies:
flutter:
sdk: flutter
permission_handler: ^6.0.1+1Indentation matters in
yamlfiles, so make surepermission_handleris at the same indentation level as theflutter:item.
Now run this command (path is the root of the Flutter project) to download the above dependency:
flutter pub getThe above command will also create Podfile in ios subfolder. Open ios\Podfile uncomment platform line and update the platform version to 11:
platform :ios, '11.0'At the end of the same file add pod 'NexmoClient':
target 'Runner' do
use_frameworks!
use_modular_headers!
pod 'NexmoClient'Open app_to_phone_flutter/ios folder in the termnal and install pods:
pod installThe above command will download all required dependencies including Flutter, permissions handler, and Client SDK.
Open Runner.xcworkspace in Xcode and run the app to verify that the above setup was performed correctly.
Currently, Client SDK is not available as a Flutter package, so we will have to use Android native Client SDK and communicate between iOS and Flutter using MethodChannel - this way, Flutter will call Android methods, iOS will call Flutter methods.
Flutter code will be stored in the lib/main.dart file, while iOS native code will be stored in the ios/Runner/AppDelegate.swift file.
Flutter applications are built using a programming language called Dart.
Open lib/main.dart file, and replace all of the contents with the following code:
import 'package:flutter/material.dart';
import 'package:flutter/services.dart';
void main() => runApp(MyApp());
class MyApp extends StatelessWidget {
@override
Widget build(BuildContext context) {
return MaterialApp(
title: 'Flutter Demo',
home: CallWidget(title: 'app-to-phone-flutter'),
);
}
}
class CallWidget extends StatefulWidget {
CallWidget({Key key, this.title}) : super(key: key);
final String title;
@override
_CallWidgetState createState() => _CallWidgetState();
}
class _CallWidgetState extends State<callwidget> {
SdkState _sdkState = SdkState.LOGGED_OUT;
@override
Widget build(BuildContext context) {
return Scaffold(
appBar: AppBar(
title: Text(widget.title),
),
body: Center(
child: Column(
mainAxisAlignment: MainAxisAlignment.center,
children: <widget>[
SizedBox(height: 64),
_updateView()
],
),
),
);
}
Widget _updateView() {
if (_sdkState == SdkState.LOGGED_OUT) {
return ElevatedButton(
child: Text("LOGIN AS ALICE")
);
}
}
Future<void> _loginUser() async {
// Login user
}
Future<void> _makeCall() async {
// Make call
}
Future<void> _endCall() async {
// End call
}
}
enum SdkState {
LOGGED_OUT,
LOGGED_IN,
WAIT,
ON_CALL,
ERROR
}
</void></void></void></widget></callwidget>The above code contains custom CallWidget which will be responsible for managing the application state (logging the user and managing the call). The SdkState enum represents possible states of Vonage Client SDK. This enum will be defined twice - one for the Flutter using Dart and one for iOS using Swift. The widget contains the _updateView method that will change the UI based on the SdkState value.
Run the application from the Xcode:
Running the application from xcode

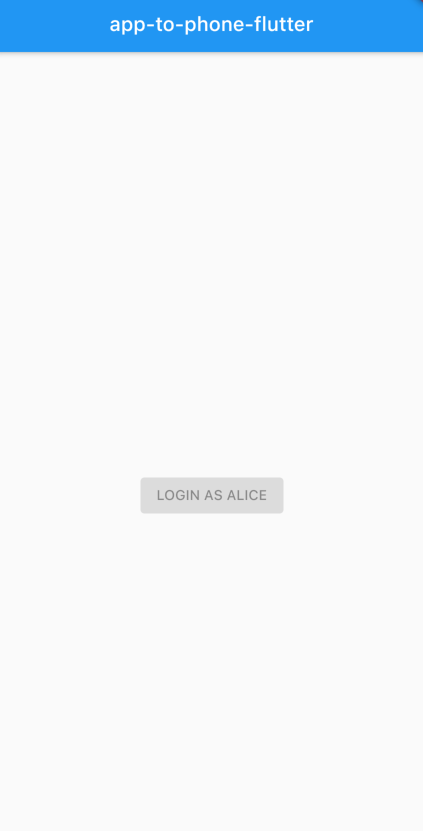

The Login as Alice button should be displayed:
Logged out screen showing Login as Alice button
The Login as Alice button is disabled so now add onPressed handler to the ElevatedButton to allow logging in:
Widget _updateView() {
if (_sdkState == SdkState.LOGGED_OUT) {
return ElevatedButton(
onPressed: () { _loginUser(); },
child: Text("LOGIN AS ALICE")
);
}
}Update body of _loginUser method to communicate with native code and login the user:
Future<void> _loginUser() async {
String token = "ALICE_TOKEN";
try {
await platformMethodChannel.invokeMethod('loginUser', <string, dynamic="">{'token': token});
} on PlatformException catch (e) {
print(e);
}
}
</string,></void>Replace the ALICE_TOKEN with the JWT token we obtained previously from Vonage CLI to authenticate the user Alice for the conversation access. Flutter will call the loginUser method and pass the token as an argument. The loginUser method is defined in the MainActivity class (we will get there in a moment). To call this method from Flutter we have to define a MethodChannel. Add platformMethodChannel field at the top of _CallWidgetState class:
Add platformMethodChannel field at the top of _CallWidgetState class:
class _CallWidgetState extends State<callwidget> {
SdkState _sdkState = SdkState.LOGGED_OUT;
static const platformMethodChannel = const MethodChannel('com.vonage');
</callwidget>The com.vonage string represents the unique channel id that we will also refer to the native iOS code (AppDelegate class). Now we need to handle this method call on the native iOS side.
Open ios/Runner/AppDelegate class and vonageChannel property that will hold the reference to the FlutterMethodChannel:
@UIApplicationMain
@objc class AppDelegate: FlutterAppDelegate {
var vonageChannel: FlutterMethodChannel?
...To listen for method calls originating from Flutter add addFlutterChannelListener method inside AppDelegate class (same level as above application method):
func addFlutterChannelListener() {
let controller = window?.rootViewController as! FlutterViewController
vonageChannel = FlutterMethodChannel(name: "com.vonage",
binaryMessenger: controller.binaryMessenger)
vonageChannel?.setMethodCallHandler({ [weak self]
(call: FlutterMethodCall, result: @escaping FlutterResult) -> Void in
guard let self = self else { return }
switch(call.method) {
case "loginUser":
if let arguments = call.arguments as? [String: String],
let token = arguments["token"] {
self.loginUser(token: token)
}
result("")
default:
result(FlutterMethodNotImplemented)
}
})
}The above method "translates" the Flutter method calls to methods defined in the AppDelegate class (the loginUser for now).
And missing the loginUser methods inside the same class (we will fill the body soon):
func loginUser(token: String) {
}Now add addFlutterChannelListener method call inside the application method:
override func application(
_ application: UIApplication,
didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
) -> Bool {
addFlutterChannelListener()
GeneratedPluginRegistrant.register(with: self)
return super.application(application, didFinishLaunchingWithOptions: launchOptions)
}The code is in place - after pressing the Login As Alice button the Flutter app will call the _loginUser method. Through the Flutter platform channel, the method will call the loginUser method defined in the AppDelegate class.
Run the application from Xcode to make sure it is compiling.
Before we will be able to log in user we need to initialize the Vonage SDK Client.
Open AppDelegate class and add the NexmoClient import at the top of the file:
import NexmoClientIn the same file add client property that will hold a reference to Vonage Client.
@UIApplicationMain
@objc class AppDelegate: FlutterAppDelegate {
var vonageChannel: FlutterMethodChannel?
let client = NXMClient.shared
...Now add initClient method to initialize the client:
func initClient() {
client.setDelegate(self)
}To call the initClient method from the existing application method, we're going to need to add the initClient() line as shown in the example below:
override func application(
_ application: UIApplication,
didFinishLaunchingWithOptions launchOptions: [UIApplication.LaunchOptionsKey: Any]?
) -> Bool {
initClient()
addFlutterChannelListener()
GeneratedPluginRegistrant.register(with: self)
return super.application(application, didFinishLaunchingWithOptions: launchOptions)
}Before allowing conversation we need to know that the user has correctly logged in. In the AppDelegate file add a delegate to listen for Vonage Client SDK connection state changes:
extension AppDelegate: NXMClientDelegate {
func client(_ client: NXMClient, didChange status: NXMConnectionStatus, reason: NXMConnectionStatusReason) {
switch status {
case .connected:
notifyFlutter(state: .loggedIn)
case .disconnected:
notifyFlutter(state: .loggedOut)
case .connecting:
notifyFlutter(state: .wait)
@unknown default:
notifyFlutter(state: .error)
}
}
}Finally, the notifyFlutter method needs to be added to the same class:
func client(_ client: NXMClient, didReceiveError error: Error) {
notifyFlutter(state: .error)
}
}
Modify loginUser method body to call login on the client instance:
func loginUser(token: String) {
self.client.login(withAuthToken: token)
}This method will allow us to log-in the user (Alice) using the Client SDK to access the conversation.
To notify Flutter of any changes to the state in the Client SDK, we'll need to add an enum to represents the states of the Client SDK. We've already added the equivalent SdkState enum in the main.dart file. Add the following SdkState enum, at the bottom of the MainActivity.kt file:
enum SdkState: String {
case loggedOut = "LOGGED_OUT"
case loggedIn = "LOGGED_IN"
case wait = "WAIT"
case onCall = "ON_CALL"
case error = "ERROR"
}To send these states to Flutter (from above delegate) we need to add notifyFlutter method in the AppDelegate class:
func notifyFlutter(state: SdkState) {
vonageChannel?.invokeMethod("updateState", arguments: state.rawValue)
}Notice that we store the state in the enum, but we are sending it as a string.
To retrieve state updates in Flutter we have to listen for method channel updates. Open main.dart file and add _CallWidgetState constructor with custom handler:
_CallWidgetState() {
platformMethodChannel.setMethodCallHandler(methodCallHandler);
}Inside the same class (_CallWidgetState) add the handler method:
Future<dynamic> methodCallHandler(MethodCall methodCall) async {
switch (methodCall.method) {
case 'updateState':
{
setState(() {
var arguments = 'SdkState.${methodCall.arguments}';
_sdkState = SdkState.values.firstWhere((v) {return v.toString() == arguments;}
);
});
}
break;
default:
throw MissingPluginException('notImplemented');
}
}
</dynamic>These methods receive the "signal" from Android and convert it to an enum. Now update the contents of the _updateView method to support SdkState.WAIT and SdkState.LOGGED_IN states, as shown in the example below:
Widget _updateView() {
if (_sdkState == SdkState.LOGGED_OUT) {
return ElevatedButton(
onPressed: () { _loginUser(); },
child: Text("LOGIN AS ALICE")
);
} else if (_sdkState == SdkState.WAIT) {
return Center(
child: CircularProgressIndicator(),
);
} else if (_sdkState == SdkState.LOGGED_IN) {
return ElevatedButton(
onPressed: () { _makeCall(); },
child: Text("MAKE PHONE CALL")
);
}
}During SdkState.WAIT the progress bar will be displayed. After successful login application will show the MAKE PHONE CALL button.

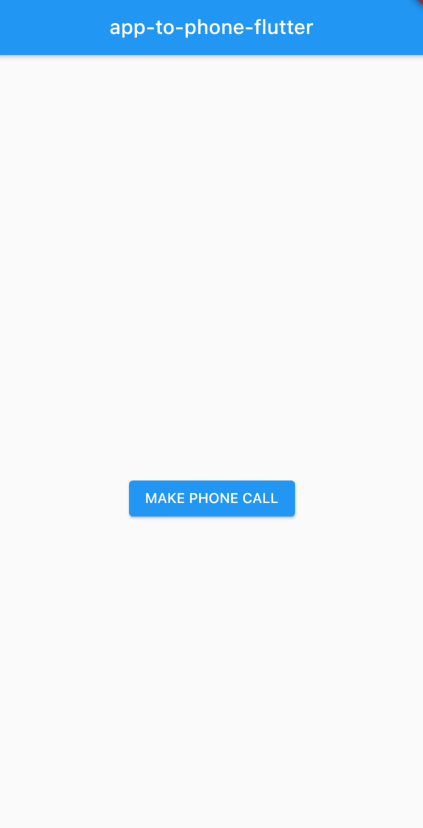

Run the app and click the button labeled LOGIN AS ALICE. The MAKE PHONE CALL button should appear, which is another state of the Flutter app based on the SdkState enum`). An example of this is shown in the image below:
Make a phone call UI state
We now need to add functionality to make a phone call. Open the main.dart file and update the body of _makeCall method as shown below:
Future<void> _makeCall() async {
try {
await platformMethodChannel
.invokeMethod('makeCall');
} on PlatformException catch (e) {
print(e);
}
}
</void>The above method will communicate with iOS so we have to update code in the AppDelegate class as well. Add makeCall clauses to the switch statement inside addFlutterChannelListener method:
func addFlutterChannelListener() {
let controller = window?.rootViewController as! FlutterViewController
vonageChannel = FlutterMethodChannel(name: "com.vonage",
binaryMessenger: controller.binaryMessenger)
vonageChannel?.setMethodCallHandler({ [weak self]
(call: FlutterMethodCall, result: @escaping FlutterResult) -> Void in
guard let self = self else { return }
switch(call.method) {
case "loginUser":
if let arguments = call.arguments as? [String: String],
let token = arguments["token"] {
self.loginUser(token: token)
}
result("")
case "makeCall":
self.makeCall()
result("")
default:
result(FlutterMethodNotImplemented)
}
})
}Now in the same file add the onGoingCall property, which defines if and when a call is ongoing:
var onGoingCall: NXMCall?NOTE: Currently the
Client SDKdoes not store ongoing call reference, so we have to store it in theAppDelegateclass. We will use it later to end the call.
Now in the same class add makeCall method:
func makeCall() {
client.call("IGNORED_NUMBER", callHandler: .server) { [weak self] (error, call) in
guard let self = self else { return }
if error != nil {
self.notifyFlutter(state: .error)
return
}
self.onGoingCall = call
self.notifyFlutter(state: .onCall)
}
}The above method sets the state of the Flutter app to SdkState.WAIT and waits for the Client SDK response (error or success). Now we need to add support for both states (SdkState.ON_CALL and SdkState.ERROR) inside main.dart file. Update body of the _updateView method to show the same as below:
Widget _updateView() {
if (_sdkState == SdkState.LOGGED_OUT) {
return ElevatedButton(
onPressed: () { _loginUser(); },
child: Text("LOGIN AS ALICE")
);
} else if (_sdkState == SdkState.WAIT) {
return Center(
child: CircularProgressIndicator(),
);
} else if (_sdkState == SdkState.LOGGED_IN) {
return ElevatedButton(
onPressed: () { _makeCall(); },
child: Text("MAKE PHONE CALL")
);
} else if (_sdkState == SdkState.ON_CALL) {
return ElevatedButton(
onPressed: () { _endCall(); },
child: Text("END CALL")
);
} else {
return Center(
child: Text("ERROR")
);
}
}Each state change will result in UI modification. Before making a call the application needs specific permissions to use the microphone. In the next step, we're going to add the functionality in the project to request these permissions.
The application needs to be able to access the microphone, so we have to request access to the microphone (Permission.microphone for Flutter ).

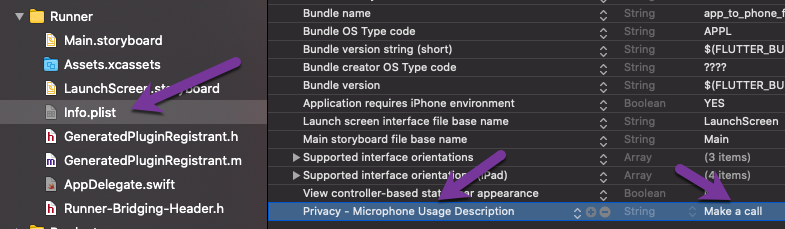

Open ios/Runner/info.plist file and add Privacy - Microphone Usage Description key with Make a call value:
Setting add microphone permission
We already added the permission_handler package to the Flutter project. Now at the top of the main.dart file, we'll need to import the permission_handler package as shown in the example below:
import 'package:permission_handler/permission_handler.dart';To trigger the request for certain permissions, we'll need to add the requestPermissions() method within the _CallWidgetState class inside the main.dart file. So add this new method inside the class:
Future<void> requestPermissions() async {
await [ Permission.microphone ].request();
}
</void>The above method will request permissions using permission_handler.
In the same class, modify the body of the _makeCall class to request permissions before calling the method via the method channel:
Future<void> _makeCall() async {
try {
await requestPermissions();
...
}
</void>Run the app and click MAKE PHONE CALL to start a call. The permissions dialogue will appear and, after granting the permissions, the call will start.
Reminder: we defined the phone number earlier in the
NCCO

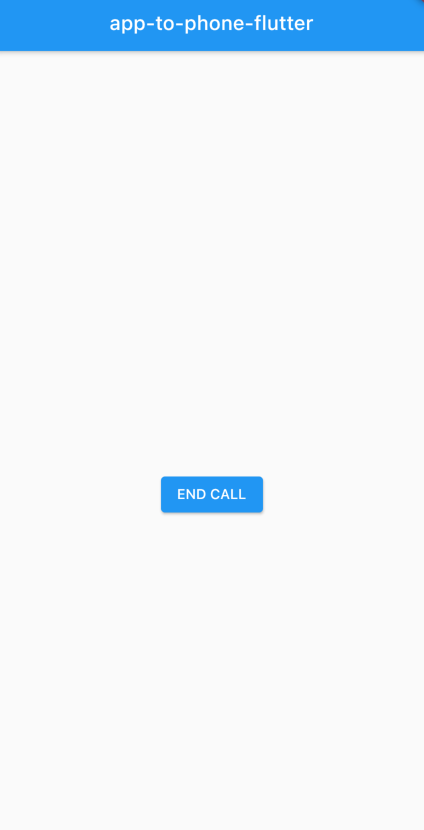

The state of the application will be updated to SdkState.ON_CALL and the UI will be updated:
On call UI
To end the call we need to trigger the method on the native iOS application using platformMethodChannel. Inside main.dart file, update the body of the _endCall method:
Future<void> _endCall() async {
try {
await platformMethodChannel.invokeMethod('endCall');
} on PlatformException catch (e) {}
}
</void>The above method will communicate with iOS, so we have to update code in the AppDelegate class as well. Add endCall clauses to the switch statement inside the addFlutterChannelListener method:
func addFlutterChannelListener() {
let controller = window?.rootViewController as! FlutterViewController
vonageChannel = FlutterMethodChannel(name: "com.vonage",
binaryMessenger: controller.binaryMessenger)
vonageChannel?.setMethodCallHandler({ [weak self]
(call: FlutterMethodCall, result: @escaping FlutterResult) -> Void in
guard let self = self else { return }
switch(call.method) {
case "loginUser":
if let arguments = call.arguments as? [String: String],
let token = arguments["token"] {
self.loginUser(token: token)
}
result("")
case "makeCall":
self.makeCall()
result("")
case "endCall":
self.endCall()
result("")
default:
result(FlutterMethodNotImplemented)
}
})
}Now in the same class add the endCall method:
func endCall() {
onGoingCall?.hangup()
onGoingCall = nil
notifyFlutter(state: .loggedIn)
}The above method sets the state of the Flutter app to SdkState.WAIT and waits for the response from the Client SDK, which can be either error or success. Both UI states are already supported in the Flutter application (_updateView method).
We have handled ending the call by pressing the END CALL button in the Flutter application UI. However, the call can also end outside of the Flutter app, e.g. the call will be rejected or answered, and later ended by the callee (on the real phone).
To support these cases we have to add the NexmoCallEventListener listener to the call instance and listen for call-specific events.
In the AppDelegares.swift file add NXMCallDelegate:
extension AppDelegate: NXMCallDelegate {
func call(_ call: NXMCall, didUpdate callMember: NXMCallMember, with status: NXMCallMemberStatus) {
if (status == .completed || status == .cancelled) {
onGoingCall = nil
notifyFlutter(state: .loggedIn)
}
}
func call(_ call: NXMCall, didUpdate callMember: NXMCallMember, isMuted muted: Bool) {
}
func call(_ call: NXMCall, didReceive error: Error) {
notifyFlutter(state: .error)
}
}To register above listener modify onSuccess callback inside makeCall method:
func makeCall() {
client.call("IGNORED_NUMBER", callHandler: .server) { [weak self] (error, call) in
guard let self = self else { return }
if error != nil {
self.notifyFlutter(state: .error)
return
}
self.onGoingCall = call
self.onGoingCall?.setDelegate(self)
self.notifyFlutter(state: .onCall)
}
}Run the app and make a phone call from the mobile application to a physical phone number.
We have successfully built the application. By doing so we have learned how to make a phone call from a mobile application to the phone using Vonage Client SDK. For the complete project please check GitHub. This project additionally contains the Android native code (android folder) allowing us to run this app on Android as well.
To familiarize yourself with other functionalities please check other tutorials and Vonage developer center.
){kind=small}
