Migration from SMS API to Messages API

The Vonage Messages API is the recommended way to send and receive SMS. It supports multiple channels such as SMS, MMS, RCS, and WhatsApp through a single, consistent interface. This guide compares the HTTP-based SMS API and Messages API for SMS use cases, and walks through the account setup, outbound requests, inbound payloads, and status tracking changes you need to make during a migration. It does not cover SMPP integrations.

Setting Up Your Vonage Account to Use the Messages API

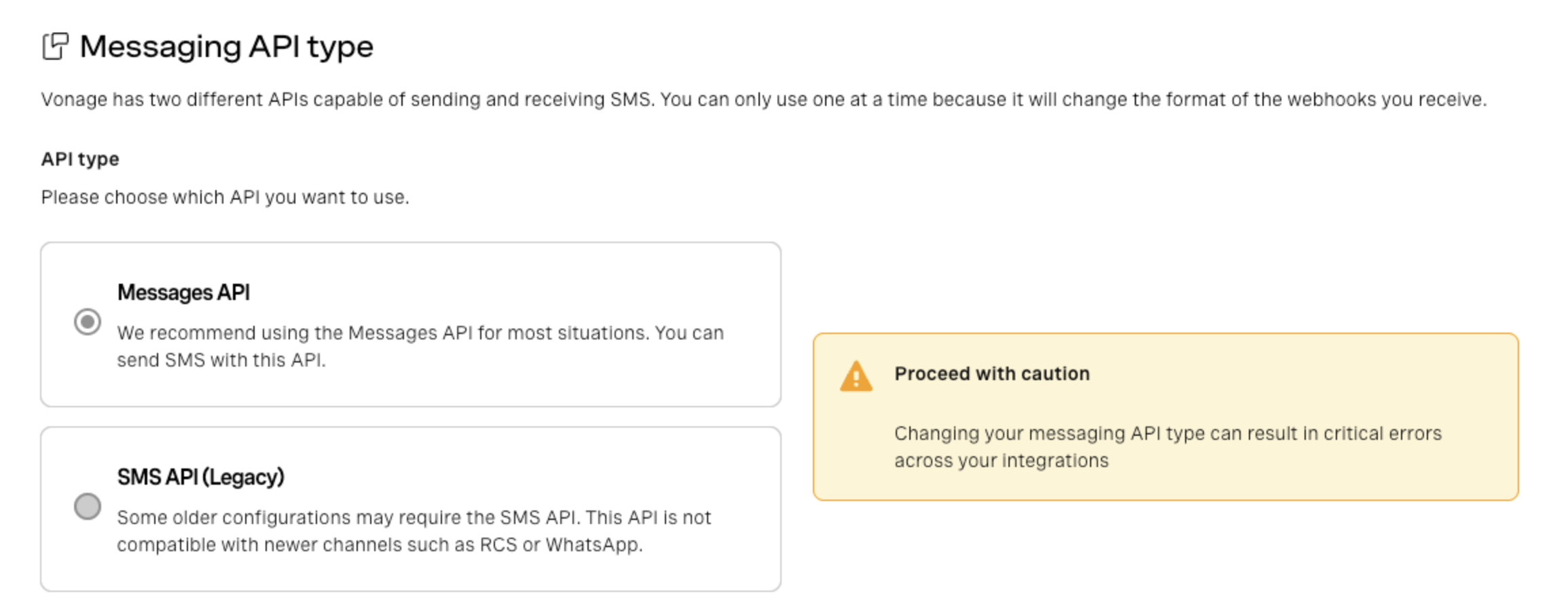

Select the Messages API in the Dashboard

The first step in migrating from the legacy SMS API to the Messages API is to update the Messaging API type setting on the API Settings page of the Vonage Developer Dashboard. Select Messages API as the API type here.

If you do not change this setting from SMS API (legacy), inbound messages and delivery receipts will continue to use the SMS API configuration in the Dashboard.

Account-level Settings vs. Vonage Applications

Once you've set your account to use the Messages API, you need to decide how you want to configure your Messages API settings. There are two ways to do this:

• Account-level settings
• A Vonage Application

The main differences between the two are where you configure webhooks and the credentials used for authentication (and therefore the authentication methods available). Using the Messages API with account-level settings is closer in terms of configuration to how settings for the SMS API are configured. The table below compares the differences in more detail.

1. Both the SMS API and the Messages API also support overriding the configured DLR/Status webhook URL on a per-request basis.
2. We strongly recommend using Messages API v1 for your migration. Ensure that the Version is set to v1 either in your account settings or in any Vonage application you create (depending on the configuration approach you are using). This is the default for all new Vonage accounts, but may be set to v0.1 on older accounts for backwards compatibility.

In general, we would recommend using Vonage Applications for your Messages API integration due to their increased flexibility, and use of JWTs for authentication. However, since account-level settings are closer to the approach used by the SMS API, you may want to consider a two-step approach for your migration, first moving to account-level settings and basic authentication for the Messages API before then using Vonage Applications.

What is a Vonage Application?

A Vonage Application may be a new concept for developers coming from the SMS API. It is essentially a container for the configuration and credentials. It is not the same as your software application.

Each Vonage Application holds:

• A name
• A unique Application ID
• A generated public/private key pair (used for JWT authentication)
• Additional product-specific settings. For the Messages API, these include webhook URLs for inbound messages and message status updates

The SMS API does not use applications. Webhooks are configured globally at the account level. Although you can still use account-level settings with the Messages API if you choose to, it also supports the use of Vonage Applications. Since each application has its own webhook configuration and settings, this makes it easier to manage multiple integrations independently.

Why are Vonage Applications Recommended?

The choice of configuration approach in the Messages API affects where your settings are configured and also the Authentication method used.

Vonage Applications are recommended because:

• Since settings are defined at the Vonage Application-level, and you can create many applications, this makes it easier to manage multiple integrations for different business workflows or use-cases.
• Vonage Applications can be created and managed programmatically using the Vonage CLI or Application API
• Vonage Applications enable the use of JWTs, generated using a public/private key pair, for authentication. This adds an additional layer of security to the authentication process compared to Basic Authentication.

Using Account-level Settings

If you want to use account-level settings with the Messages API webhooks, the basic setup flow is:

1. Open API Settings in the Dashboard.
2. Set the Messages API version to v1.
3. Configure the account-level inbound and status webhook URLs.
4. Review Your Numbers for any per-number inbound overrides that could change routing.
5. Send Messages API requests using Basic Authentication.
6. Validate that inbound messages and status callbacks are reaching the expected account-level endpoints before switching production traffic.

Using a Vonage Application for Messages API

If you want application-level routing and JWT authentication, the setup flow is:

1. Create a new application, or open the existing application you want to use.
2. Enable the Messages capability.
3. Configure the application's inbound and status webhook URLs.
4. Set the Messages API version to v1.
5. Link the SMS-capable number to that application.
6. Send Messages API requests using JWT authentication.
7. Validate that inbound messages and status callbacks are reaching the application-level endpoints before switching production traffic.

Create a Vonage API Application

There are three alternative methods for creating a Messages application:

1. Using the Vonage CLI
2. Using the Dashboard
3. Using the Application API

Each of these methods is described in the following sections.

How to Create a Messages Application Using the Vonage CLI

To create your application using the Vonage CLI, enter the following command into the shell:

This command creates a Vonage API application with a messages capability, and the webhook URLs are configured as specified. It also generates a private key file my_messages_app.key and creates or updates the vonage_app.json file.

How to Create a Messages Application Using the Dashboard

You can create a Messages application in the Dashboard.

To create your application using the Dashboard:

1. Under Applications in the Dashboard, click the Create a new application button.

2. Under Name, enter the Application name. Choose a name for ease of future reference.

3. Click the button Generate public and private key. This will create a public/private key pair and the private key will be downloaded by your browser.

4. Under Capabilities select the Messages button.

5. In the Inbound URL box, enter the URL for your inbound message webhook, for example, https://example.com/webhooks/inbound-message.

6. In the Status URL box, enter the URL for your message status webhook, for example, https://example.com/webhooks/message-status.

7. Click the Generate new application button. You are now taken to the next step of the Create Application procedure where you can link a Vonage API number to the application, and link external accounts such as Facebook to this application.

8. If there is an external account you want to link this application to, click the Linked external accounts tab, and then click the corresponding Link button for the account you want to link to.

You have now created your application.

How to Create a Messages Application Using the Application API

The Application API lets you create and configure a Vonage Application programmatically — without using the dashboard or the CLI. A Vonage Application created via the Application API works the same as one created through the dashboard.

For a full overview of how to create a Vonage Application, see Create a Vonage Application.

Linking a Phone Number to Your Application

In the Dashboard, open the Applications page, select the application you want to use, and link the number from that application's Link numbers tab.

You can also manage number-specific inbound webhook settings from Your Numbers. The Dashboard indicates that a per-number inbound webhook overrides the account-level inbound webhook. If you are using numbers that are also linked to a Messages application, validate the resulting routing in your account before relying on that override behavior.

Sending an SMS (Outbound Messages)

Endpoint

Request Structure

Messages API payload:

{
  "message_type": "text",
  "text": "Hello from Vonage",
  "to": "447700900000",
  "from": "Vonage",
  "channel": "sms"
}

SMS API (legacy) payload:

from=Vonage
text=Hello from Vonage
to=447700900000

Key Differences in the Request Body

Code Snippets

The following code snippets include the cURL example and the available Server SDK examples for each API.

Messages API Code Snippets

curl -X POST https://api.nexmo.com/v1/messages \
  -H "Authorization: Bearer "$JWT\
  -H 'Content-Type: application/json' \
  -H 'Accept: application/json' \
  -d $'{
    "to": "'${MESSAGES_TO_NUMBER}'",
    "from": "'${SMS_SENDER_ID}'",
    "channel": "sms",
    "message_type": "text",
    "text": "This is an SMS sent using the Vonage Messages API."
  }'

npm install @vonage/server-sdk @vonage/messages

const { Vonage } = require('@vonage/server-sdk');
const { Channels } = require('@vonage/messages');

/**
 * It is best to send messages using JWT instead of basic auth. If you leave out
 * apiKey and apiSecret, the messages SDK will send requests using JWT tokens
 *
 * @link https://developer.vonage.com/en/messages/technical-details#authentication
 */
const vonage = new Vonage(
  {
    applicationId: VONAGE_APPLICATION_ID,
    privateKey: VONAGE_PRIVATE_KEY,
  },
  {
    ...(MESSAGES_API_URL ? {apiHost: MESSAGES_API_URL} : {}),
  },
);

vonage.messages.send({
  messageType: 'sms',
  channel: Channels.SMS,
  text: 'This is an SMS text message sent using the Messages API',
  to: MESSAGES_TO_NUMBER,
  from: SMS_SENDER_ID,
})
  .then(({ messageUUID }) => console.log(messageUUID))
  .catch((error) => console.error(error));

implementation 'com.vonage:server-sdk-kotlin:2.1.1'

val client = Vonage {
    applicationId(VONAGE_APPLICATION_ID)
    privateKeyPath(VONAGE_PRIVATE_KEY_PATH)
}

val messageId = client.messages.send(
    smsText {
        to(MESSAGES_TO_NUMBER)
        from(SMS_SENDER_ID)
        text("This is an SMS text message sent using the Messages API")
    }
)

apply plugin: 'application'
mainClassName = project.hasProperty('main') ? project.getProperty('main') : ''

implementation 'com.vonage:server-sdk:9.3.1'

VonageClient client = VonageClient.builder()
		.applicationId(VONAGE_APPLICATION_ID)
		.privateKeyPath(VONAGE_PRIVATE_KEY_PATH)
		.build();

var response = client.getMessagesClient().sendMessage(
		SmsTextRequest.builder()
			.from(SMS_SENDER_ID).to(MESSAGES_TO_NUMBER)
			.text("This is an SMS text message sent using the Messages API")
			.build()
);
System.out.println("Message sent successfully. ID: " + response.getMessageUuid());

apply plugin: 'application'
mainClassName = project.hasProperty('main') ? project.getProperty('main') : ''

Install-Package Vonage

var credentials = Credentials.FromAppIdAndPrivateKeyPath(VONAGE_APP_ID, VONAGE_PRIVATE_KEY_PATH);

var vonageClient = new VonageClient(credentials);

var request = new Vonage.Messages.Sms.SmsRequest
{
    To = MESSAGES_TO_NUMBER,
    From = SMS_SENDER_ID,
    Text = "An SMS sent using the Vonage Messages API"
};

var response = await vonageClient.MessagesClient.SendAsync(request);

composer require vonage/client

pip install vonage python-dotenv

from vonage import Auth, Vonage
from vonage_messages import Sms

client = Vonage(
    Auth(
        application_id=VONAGE_APPLICATION_ID,
        private_key=VONAGE_PRIVATE_KEY,
    )
)

response = client.messages.send(
    Sms(
        to=MESSAGES_TO_NUMBER,
        from_=SMS_SENDER_ID,
        text='This is an SMS sent using the Vonage Messages API.',
    )
)
print(response)

gem install vonage

SMS API (Legacy) Code Snippets

curl -X POST https://rest.nexmo.com/sms/json \
  -u "$VONAGE_API_KEY:$VONAGE_API_SECRET" \
  -d "from=${SMS_SENDER_ID}" \
  -d "to=${SMS_TO_NUMBER}" \
  -d 'text=A text message sent using the Vonage SMS API'

npm install @vonage/server-sdk

const { Vonage } = require('@vonage/server-sdk');

const vonage = new Vonage({
  apiKey: VONAGE_API_KEY,
  apiSecret: VONAGE_API_SECRET,
});

vonage.sms.send({
  to: SMS_TO_NUMBER,
  from: SMS_SENDER_ID,
  text: 'A text message sent using the Vonage SMS API',
})
  .then((resp) => {
    console.log('Message sent successfully');
    console.log(resp);
  })
  .catch((err) => {
    console.log('There was an error sending the messages.');
    console.error(err);
  });

implementation 'com.vonage:server-sdk-kotlin:2.1.1'

val client = Vonage {
    apiKey(VONAGE_API_KEY)
    apiSecret(VONAGE_API_SECRET)
}

val response = client.sms.sendText(
    from = SMS_SENDER_ID,
    to = SMS_TO_NUMBER,
    message = "Hello from Vonage SMS API"
)

println(
    if (response.wasSuccessfullySent())
        "Message sent successfully."
    else
        "Message failed with error: ${response[0].errorText}"
)

apply plugin: 'application'
mainClassName = project.hasProperty('main') ? project.getProperty('main') : ''

implementation 'com.vonage:server-sdk:9.3.1'

VonageClient client = VonageClient.builder().apiKey(VONAGE_API_KEY).apiSecret(VONAGE_API_SECRET).build();

TextMessage message = new TextMessage(
        SMS_SENDER_ID, SMS_TO_NUMBER,
        "A text message sent using the Vonage SMS API"
);

SmsSubmissionResponse response = client.getSmsClient().submitMessage(message);

if (response.getMessages().get(0).getStatus() == MessageStatus.OK) {
    System.out.println("Message sent successfully.");
} else {
    System.out.println("Message failed with error: " + response.getMessages().get(0).getErrorText());
}

apply plugin: 'application'
mainClassName = project.hasProperty('main') ? project.getProperty('main') : ''

Install-Package Vonage

using Vonage;
using Vonage.Request;

var credentials = Credentials.FromApiKeyAndSecret(
    vonageApiKey,
    vonageApiSecret
    );

var vonageClient = new VonageClient(credentials);

var response = await vonageClient.SmsClient.SendAnSmsAsync(new Vonage.Messaging.SendSmsRequest()
{
    To = SMS_TO_NUMBER,
    From = SMS_SENDER_ID,
    Text = "A text message sent using the Vonage SMS API"
});
Console.WriteLine(response.Messages[0].To);

composer require vonage/client

pip install vonage python-dotenv

from vonage import Auth, Vonage
from vonage_sms import SmsMessage, SmsResponse

client = Vonage(Auth(api_key=VONAGE_API_KEY, api_secret=VONAGE_API_SECRET))

message = SmsMessage(
    to=SMS_TO_NUMBER,
    from_=SMS_SENDER_ID,
    text="A text message sent using the Vonage SMS API.",
)

response: SmsResponse = client.sms.send(message)
print(response)

gem install vonage

Optional Parameters and Feature Differences

Once the required SMS fields are migrated, the next step is to review any optional SMS API parameters your integration relies on.

HTTP Response Codes

This is one of the most significant behavioural differences between the two APIs.

The SMS API always returns a 200 HTTP response code, regardless of success or failure, with a status parameter in the response body, the value of which maps to the outcome.

The Messages API returns a 202 response code for successful requests, and 4xx or 5xx codes for error responses.

Some examples are shown in the comparison table below.

See Messages API errors, SMS API error codes, and the SMS API send endpoint for the full error details.

SMS API Success response

{
  "message-count": "1",
  "messages": [
    {
      "to": "447700900000",
      "message-id": "0A0000000123ABCD1",
      "status": "0",
      "remaining-balance": "3.14159265",
      "message-price": "0.03330000",
      "network": "23410"
    }
  ]
}

SMS API Error Response

{
  "message-count": "1",
  "messages": [
    {
      "status": "4",
      "error-text": "Bad Credentials"
    }
  ]
}

Messages API Success Response

{
  "message_uuid": "aaaaaaaa-bbbb-4ccc-8ddd-0123456789ab"
}

Messages API Error Response (401 Unauthorized)

{
  "type": "https://developer.vonage.com/api-errors#unauthorized",
  "title": "Unauthorized",
  "detail": "You did not provide correct credentials.",
  "instance": "bf0ca0bf927b3b52e3cb03217e1a1ddf"
}

Receiving an SMS (Inbound Messages)

Both APIs deliver inbound SMS messages to a webhook URL you configure. There are some differences between the two APIs in the structure of the inbound payload and the naming of the parameters. Webhook setup is covered in Setting up your Vonage Account to Use the Messages API.

SMS API Inbound Payload

When a message is received on the SMS API, Vonage sends a

Example payload:

{
  "msisdn": "447700900001",
  "to": "447700900000",
  "messageId": "0A0000000123ABCD1",
  "text": "Hello from a user",
  "type": "text",
  "keyword": "HELLO",
  "message-timestamp": "2020-01-01 12:00:00"
}

Messages API Inbound Payload

When a message is received on the Messages API, Vonage sends a

Example payload:

{
   "channel": "sms",
   "message_uuid": "aaaaaaaa-bbbb-4ccc-8ddd-0123456789ab",
   "to": "447700900000",
   "from": "447700900001",
   "timestamp": "2025-02-03T12:14:25Z",
   "text": "Hello From Vonage!",
   "sms": {
      "num_messages": "2",
      "keyword": "HELLO"
   },
   "usage": {
      "currency": "EUR",
      "price": "0.0333"
   },
   "origin": {
      "network_code": "12345"
   }
}

Tracking Message Status

The Messages API uses status callbacks to notify your application when the state of a message changes. These are the Messages API equivalent of the Delivery Receipts (DLRs) used by the SMS API.

DLR Status Equivalents

The closest Messages API equivalents for SMS API DLR statuses are shown below:

For more information, see Messages API Status Callbacks.

Additional Features of the Messages API

While this guide focuses on migrating your SMS integration, the Messages API offers a number of additional capabilities that are worth exploring once your migration is complete.

Multi-channel Messaging

The Messages API supports multiple channels through a single, consistent API interface. Once you have migrated your SMS integration, you can add new channels without changing your core integration:

The request structure is consistent across channels. To send a message on a different channel, you change the channel field and add any channel-specific parameters. Your webhook handler for status callbacks and inbound messages works the same way regardless of channel.

Failover

The Messages API supports failover workflows, which allow you to automatically retry a message on a different channel if the first attempt fails or is not read within a specified time window. For example, you can send a WhatsApp message and fall back to SMS if the recipient does not have WhatsApp or does not read the message within a set period.

See Messages API Failover for more information.

Rich Content

On channels that support it (RCS, WhatsApp, MMS, Messenger, Viber), the Messages API allows you to send:

• Images, video, audio, and file attachments
• Interactive message templates
• Suggested reply buttons and action buttons (RCS, WhatsApp)
• Rich cards and carousels (RCS)

Further Reading

• Messages API Reference
• Messages API Technical Details
• Messages API Failover
