How to Make Text-to-Speech Phone Calls with Node-RED
Published on May 20, 2021

This is the fourth article in a series of “Getting Started with Nexmo and Node-RED” tutorials.

In the previous tutorials you've learnt how to send and receive SMS messages programatically using the Nexmo API and how to handle inbound calls. Next, you'll be learning about outbound calls, and by the end of this article, you'll have made your first text-to-speech (TTS) phone call with Node-RED.

Prerequisites

Before getting started, you’ll need a few things:

Vonage API Account

To complete this tutorial, you will need a Vonage API account. If you don’t have one already, you can sign up today and start building with free credit. Once you have an account, you can find your API Key and API Secret at the top of the Vonage API Dashboard.

This tutorial also uses a virtual phone number. To purchase one, go to Numbers > Buy Numbers and search for one that meets your needs.

Getting Your Credentials

In order to interact with the Voice API, you'll need to make note of a couple of things. Once you've created a Nexmo account, go to the dashboard to find your API key and secret. Next, you'll need a Voice enabled virtual number. Go to Numbers > Buy numbers to get one.

A screenshot example of buying a nexmo number in the dashboardA screenshot example of buying a nexmo number in the dashboard

Setting Up Your Node-RED Editor

First, you’ll need to install the runtime and editor. This could be done either on your local machine, on a Single Board Computer (eg Raspberry Pi), or a number of cloud-hosted options. This example will be using your local machine, so once you've installed Node-RED globally, just type the command below in your terminal to get started.

node-red

You can then access the Node-RED editor by pointing your browser at http://localhost:1880.

Once you have your editor open, you'll need to install the Nexmo nodes. You can do so under the Manage palette menu, by searching for the node-red-contrib-nexmo package and clicking install.

Showing how to install Nexmo on Node-RedShowing how to install Nexmo on Node-Red

Now you should see all of the Nexmo nodes appear on the left side of your screen, among the other default nodes.

Make a Text-to-Speech Phone Call with Node-RED

Creating a Nexmo Application

Some of Nexmo’s APIs, including the Voice API, use Nexmo Applications to hold security and config information needed to connect to Nexmo endpoints.

In the Nexmo Node-RED palette, several nodes have the ability to create these applications: getrecording, earmuff, mute, hangup, transfer, createcall, playaudio, playtts and playdtmf.

Since the end goal is to make an outbound call, use the createcall node, which will make an outound call using the NCCO created above.

Once you have it in your workspace, double-click on the createcall node to open up the node editor. Next to the Nexmo Credentials, select "Add new nexmovoiceapp..." from the drop-down menu and click the edit button. Fill in the details below and click Create New Application.

KEY DESCRIPTION
Name Choose a name for your Voice Application, for example TTS call Node-RED.
API Key Your Nexmo API key, shown in your account overview.
API Secret Your Nexmo API secret, shown in your account overview.
Answer URL The URL that Nexmo makes a request to when handling inbound calls. Won't need one for this tutorial, so use http://example.com for now.
Event URL Nexmo will send call events (e.g. ringing, answered) to this URL. If you’d like to receive events about the progress of your call, make sure your server is exposed to the internet, then use YOUR_URL/event for this field.\

\

Otherwise, feel free to use http://example.com - this will respond with 200 OK.\

\

You could also override this eventURL for a specific createCall node in its node properties.

Node-RED will then create a new Nexmo Application on your account and fill in the App ID and Private Key fields for you to save. Now you can find this application in your Nexmo Dashboard under Voice > Your Applications.

Showing how to create a voice applicationShowing how to create a voice application

Build the Nexmo Call Control Object (NCCO)

Nexmo calls are controlled using Nexmo Call Control Objects, also known as NCCOs. An NCCO defines a list of actions to be followed when a call is handled. There are lots of different actions available, find the corresponding nodes under the Nexmo palette in your Node-RED editor or check out the NCCO Reference to find out more about them.

For this tutorial, we'll be using the talk action.

Once the NCCO is ready, this will be passed on to the createcall node, which will be used to make the outbound call. This createcall node takes 3 types of input for NCCO in the Answer field: JSON, URL or msg.ncco. Depending on which one you choose, there are 3 corresponding ways to build the NCCO, as follows.

msg.ncco

Drag and drop the talk node into your workspace, doule-click on it to open the node properties and set the Text{} field to the message you'd like to be read out when the call is answered. Note the {} sign next to the Text label, indicating that this value can be set dynamically, using Mustache templating. You can also select a Voice Name, see the Text to Speech Guide for the full list of options.

Next, wire talk node's output into the createcall node, then under the createcall node properties select msg.ncco from the Answer drop-down menu.

Example how to create the talk message nccoExample how to create the talk message ncco

JSON

If you'd rather write your NCCO as JSON, instead of using the action nodes, you can do so in the createcall node. Open the node properties and select JSON in the Answer field. Expand the JSON editor and paste in the snippet below:

[
    {
        "action": "talk",
        "text": "This is a text to speech message from Nexmo"
    }
]

Make sure you've set talk as an action, but feel free to customise the text.

Example on how to create talk json nccoExample on how to create talk json ncco

Answer URL

Alternatively, you can serve up the NCCO at an AnswerURL. In this case, you'll also need to expose your local server to the internet.

Drag and drop the talk node into your workspace, then connect it to a voice webhook input node and a return NCCO output node. Next, in the voice webhook node, select GET as a method and type something like /answer in the answer URL field.

Finally, go to the talk node properties and set the Text{} field to the message you'd like to be read out when the call is answered. Note the {} sign next to the Text label, indicating that this value can be set dynamically, using Mustache templating.

You can also select a Voice Name, see the Text to Speech Guide for the full list of options.

Example showing how to create a talk answer url nccoExample showing how to create a talk answer url ncco

Exposing your local server to the internet

Next you'll have to expose your local server to the internet, so that Nexmo can access it. If you’re running Node-RED on a public webserver instead of your local machine, you can skip this stage.

Otherwise, a convenient way to do this is by using a tunneling service like ngrok.

Download and install ngrok, then run it in the terminal to start a tunnel on port 1880.

./ngrok http 1880

Navigate to the URL displayed, to find your Node-RED Editor.

Finally, go to the createcall node properties, select URL from the Answer drop-down, and fill in the field with YOUR_URL/answer

Ngrok update answer call urlNgrok update answer call url

Making the Outbound Call

Next, let's have a closer look at the createcall node properties. To actually make the outbound call, you need to fill in a few more details.

First, select Phone from the Endpoint drop-down menu. This will forward the call to a phone number, which you can specify in the text field next to the Number{} label.

Note the {} sign, which means that Mustache templating is supported for these fields. You could hardcode a phone number in here, or pass it in dynamically using an inject node, and in this case, referencing it with {{msg.payload}}.

Moving on to the next step, set one of your virtual numbers as the From{} number.

Add an inject node to the flow and wire it as an input for createcall. In its node properties, select Number from the Payload drop-down menu, and fill in the text field next to it with the phone number you wish to call in E.164 format. For example 447401234567.

To have a bit more insight into what's happening when you make the call, wire the createcall's output into a debug node.

Now hit Deploy and click the inject node's button - your phone should be ringing any second now!

Making a TTS call with the talk NCCOMaking a TTS call with the talk NCCO

Optional: Event Webhook

If you'd like to receive events about the progreess of your call, you can also setup an event webhook. First, you'll need to set up an event handler, then expose your local server to the internet.

Setting up a handler for the event URL

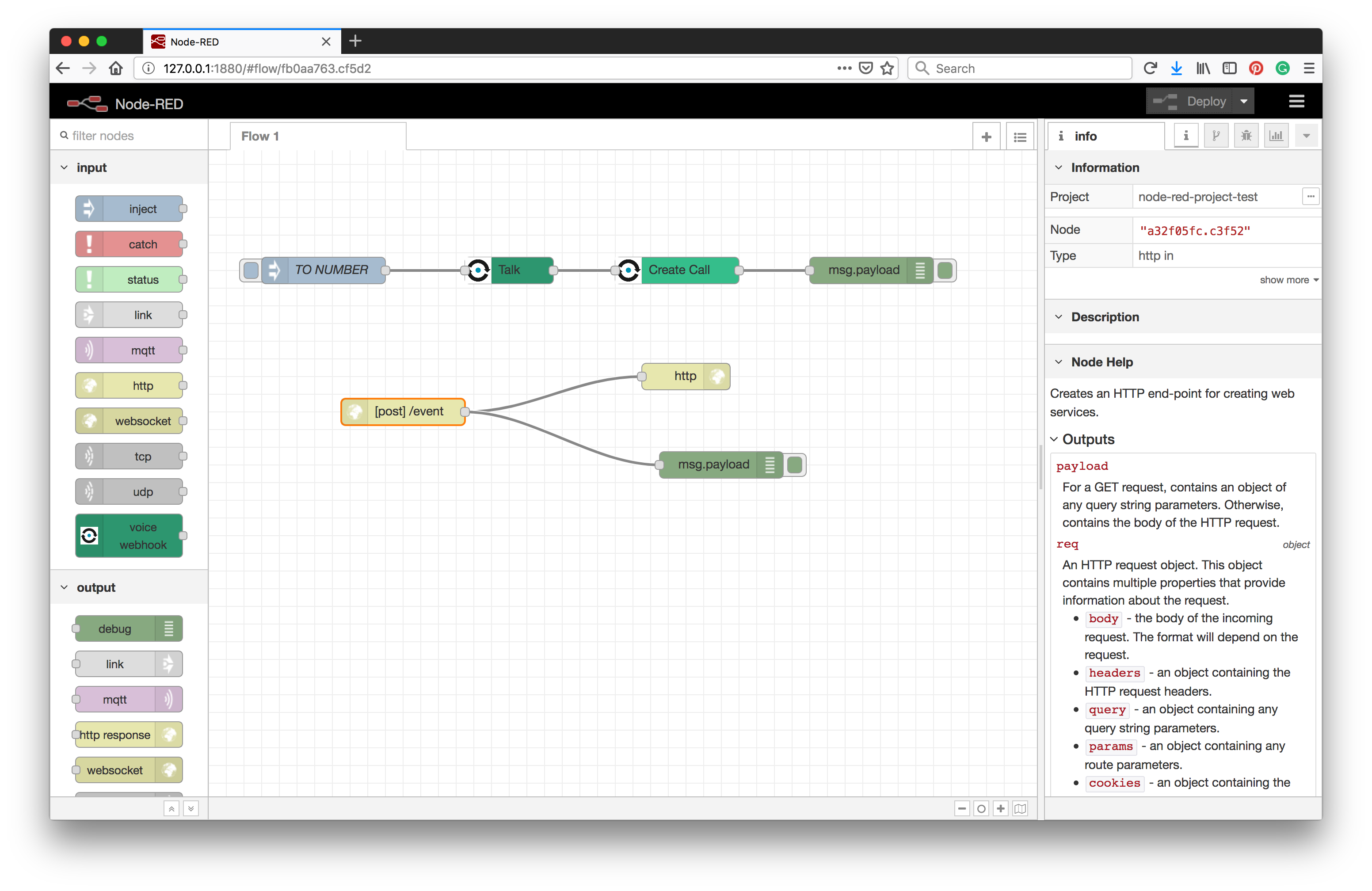

Connect a http input node to a http response node, as well as to a debug node, so that you can view your delivery receipt in the debug area.

In the http input node, select POST as a Method and fill in the URL field with something like /event. The http response node should have 200 set as Status code, but don't worry about it, this is the default value as well.

Even handler TTSEven handler TTS

Exposing your local server to the internet

Next you'll have to expose your local server to the internet, so that Nexmo can access it. If you’re running Node-RED on a public webserver, or you've opted for serving up the NCCO at an AnswerURL, you can skip this step.

Otherwise, a convenient way to do this is by using a tunneling service like ngrok.

Download and install ngrok, then run it in the terminal to start a tunnel on port 1880.

./ngrok http 1880

Navigate to the URL displayed, to find your Node-RED Editor.

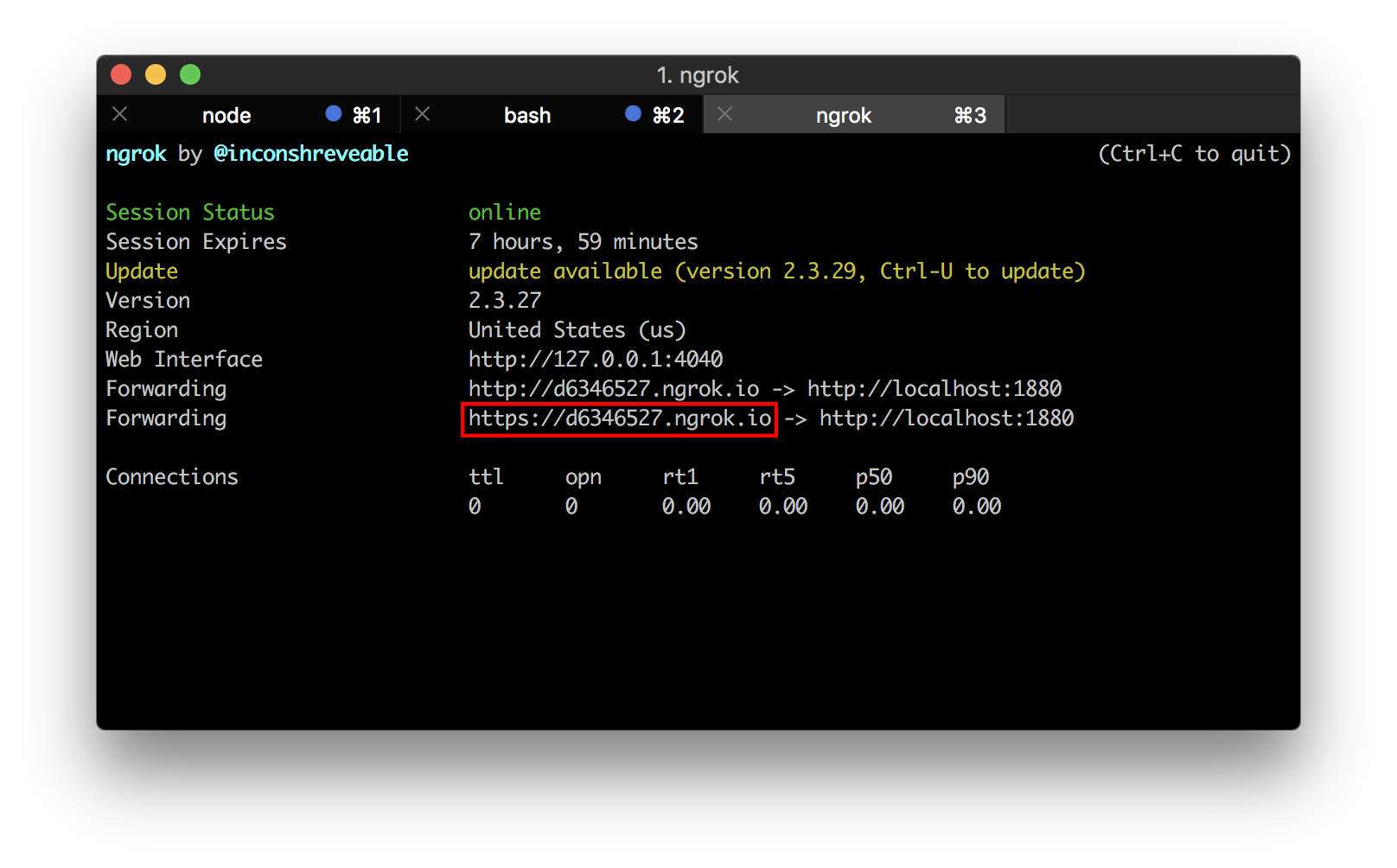

Ngrok nodered TTS Outbound callNgrok nodered TTS Outbound call

Update the Event URL

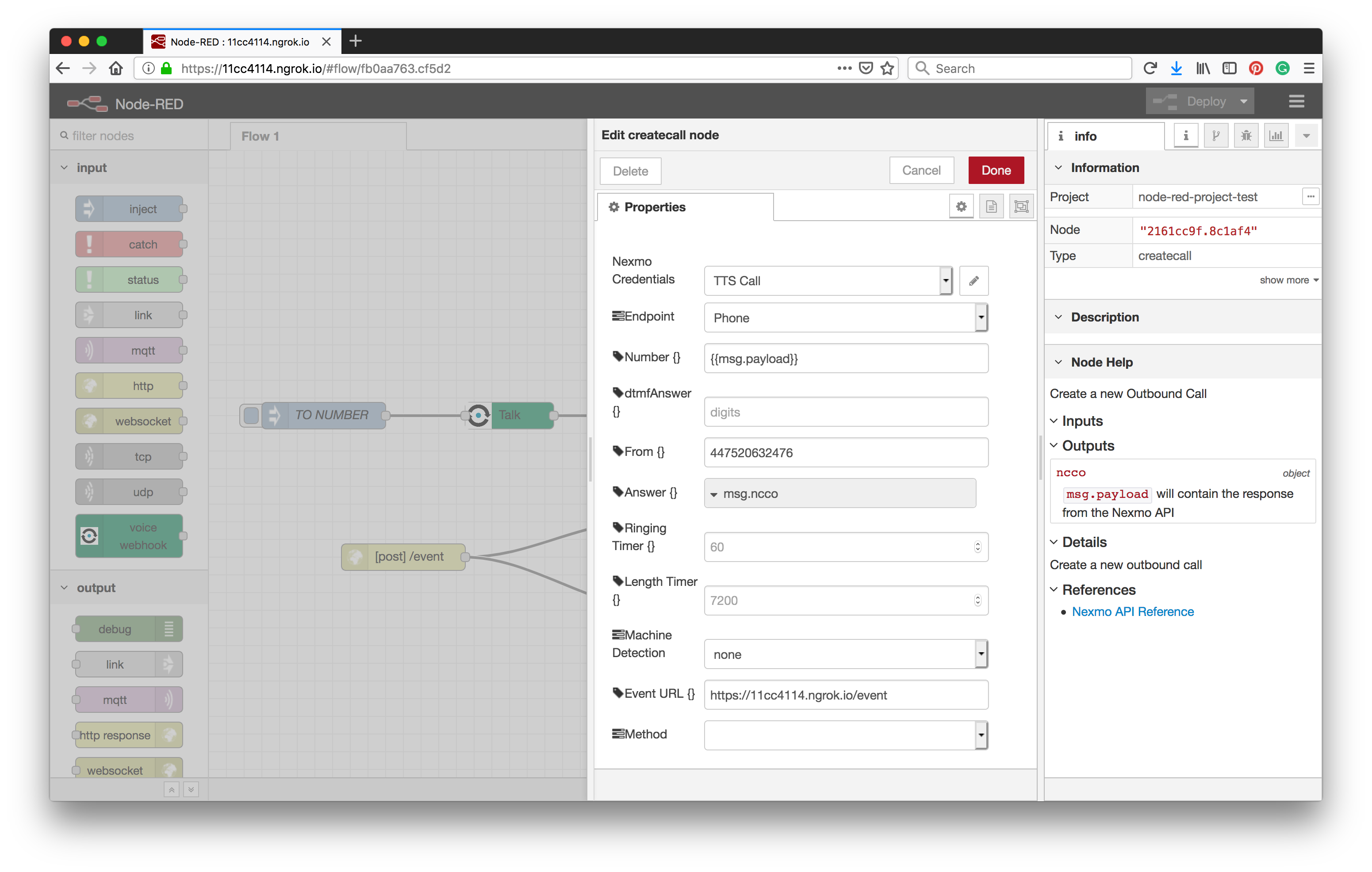

Finally, open up the createcall node properties and fill in the Event URL field with YOUR_URL/event.

Update event url TTSUpdate event url TTS

Hit Deploy and click the inject node's button - your phone will be ringing any second now! You can now also follow the flow of your call in the debug sidebar.
