Eurovision is one of my favorite events of the year. For those who don't know, Eurovision is a singing competition which is weird, wonderful and wacky in equal measures. Each participating country submits one act to perform an original song - which are often ridiculous and brilliant. Go on then - have a few more links.
Countries that make it to the final perform live before people in participating countries vote for their favorite act (not including their own). Votes from each country are counted, and as a result, each gives out 58 points: 12 for the top, then 10, and finally 8 through 1. In recent years, professional juries make up half the vote for each country, but we'll forget they exist for the sake of this project.

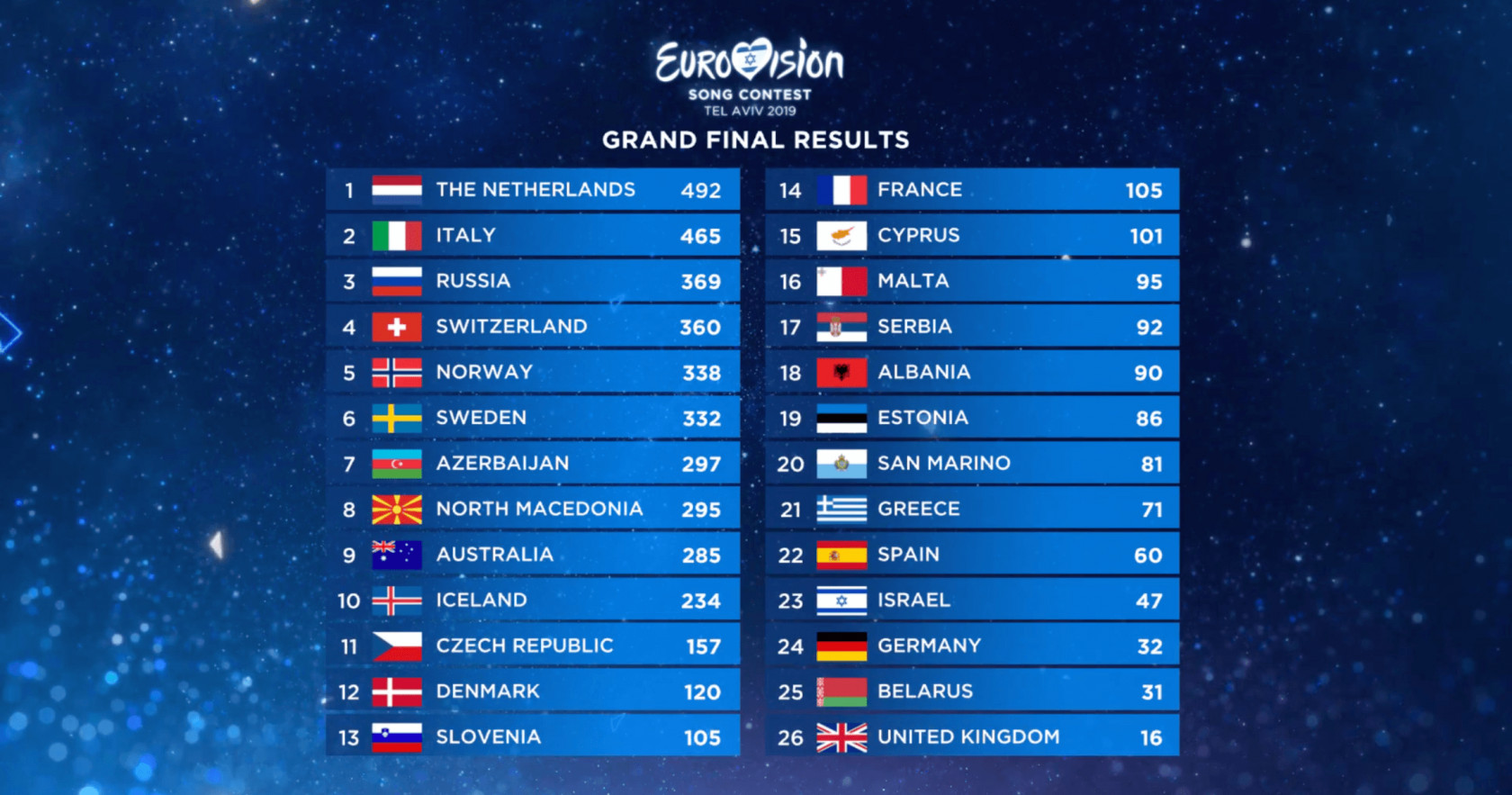

2019 Eurovision Leaderboard
I'm a massive Eurovision fan, and thought it would be a fun project to build a fully-working voting system using the Vonage Number Insights API to validate the origin of a number.
We'll first be setting up a database with every participating country. This dataset will also highlight who the finalists are (using 2019's contestants). Then, we'll handle incoming votes via SMS, store votes if valid, and reply using the Vonage Messages API. Finally, we'll build a front-end that will allow us to get results per-country with an updating leaderboard. The whole project will be hosted on Netlify with Vue.js used for our minimal front-end.
If you just want to see the finished code you can find it at https://github.com/nexmo-community/eurovision-voting-system-js.
Ready? Let's go!
We're going to need a few accounts to get this to work. If you haven't already, get a:
Open the terminal, create a new empty directory for this project, and initialize a new project by typing npm init -y. Once completed, install required dependencies by running npm install dotenv encoding mongodb netlify-lambda nexmo@beta.
You'll also need the Nexmo CLI. Run npm install -g nexmo-cli@beta to install it, go to your account online to get your API Key/Secret, and then run nexmo setup <api_key> <api_secret>.
To complete this tutorial, you will need a Vonage API account. If you don’t have one already, you can sign up today and start building with free credit. Once you have an account, you can find your API Key and API Secret at the top of the Vonage API Dashboard.
We'll be using a hosted MongoDB instance on MongoDB Atlas. Log in to your Mongo DB Atlas account and create a new project with any name you want. Create a new cluster (free tier is fine)—I'm calling mine Eurovision—and wait for the changes to be deployed.
Click the Connect button in your new cluster, add your current IP Address, and create a new MongoDB User who can access this database (take note of the password).
On the next pane, we are presented with a number of ways to connect to your database. Choose Connect your application and copy the URI to your clipboard.
Before we continue, we must create a new .env file in the project directory to contain all of our sensitive strings that we don't want others to see. The content of the file should be:
DB_URL=<mongo db="" uri="">
</mongo>Replace <password> with your MongoDB User password, and <dbname> with eurovision.
Click the Collections button in your cluster, then Add My Own Data to create a new collection. We should create two:
Database name:
eurovision, collection name:countriesDatabase name:
eurovision, collection name:votes
We added our own IP address to the list, which allows access to this database from our local application. However, when we later deploy this project, we won't have access to Static IP Addresses. Click Network Access in the sidebar, then Add IP Address, and finally Allow Access From Anywhere. Confirm your changes to lift the restrictions will be lifted.
In 2019, there were 42 Eurovision entries, of which 26 made it through to the final. As we only need to populate this data once, I have written a script to automate this data entry. Create a folder called boilerplate, and inside of it a file called addCountries.js. Put the following code in the file:
// Load environment variables
require('dotenv').config()
// Initialize MongoClient
const { MongoClient } = require('mongodb')
const mongo = new MongoClient(process.env.DB_URL, { useUnifiedTopology: true })
const countriesList = [
{ "iso": "ALB", "name": "Albania", "final": true },
{ "iso": "ARM", "name": "Armenia", "final": false },
{ "iso": "AUS", "name": "Australia", "final": true },
{ "iso": "AUT", "name": "Austria", "final": false },
{ "iso": "AZE", "name": "Azerbaijan", "final": true },
{ "iso": "BLR", "name": "Belarus", "final": true },
{ "iso": "BEL", "name": "Belgium", "final": false },
{ "iso": "HRV", "name": "Croatia", "final": false },
{ "iso": "CYP", "name": "Cyprus", "final": true },
{ "iso": "CZE", "name": "Czech Republic", "final": true },
{ "iso": "DNK", "name": "Denmark", "final": true },
{ "iso": "EST", "name": "Estonia", "final": true },
{ "iso": "FIN", "name": "Finland", "final": false },
{ "iso": "FRA", "name": "France", "final": true },
{ "iso": "DEU", "name": "Germany", "final": true },
{ "iso": "GEO", "name": "Georgia", "final": false },
{ "iso": "GRC", "name": "Greece", "final": true },
{ "iso": "HUN", "name": "Hungary", "final": false },
{ "iso": "ISL", "name": "Iceland", "final": true },
{ "iso": "IRL", "name": "Ireland", "final": false },
{ "iso": "ISR", "name": "Israel", "final": true },
{ "iso": "ITA", "name": "Italy", "final": true },
{ "iso": "LVA", "name": "Latvia", "final": false },
{ "iso": "LTU", "name": "Lithuania", "final": false },
{ "iso": "MKD", "name": "North Macedonia", "final": true },
{ "iso": "MLT", "name": "Malta", "final": true },
{ "iso": "MDA", "name": "Moldova", "final": false },
{ "iso": "MNE", "name": "Montenegro", "final": false },
{ "iso": "NLD", "name": "Netherlands", "final": true },
{ "iso": "NOR", "name": "Norway", "final": true },
{ "iso": "POL", "name": "Poland", "final": false },
{ "iso": "PRT", "name": "Portugal", "final": false },
{ "iso": "ROU", "name": "Romania", "final": false },
{ "iso": "RUS", "name": "Russia", "final": true },
{ "iso": "SMR", "name": "San Marino", "final": true },
{ "iso": "SRB", "name": "Serbia", "final": true },
{ "iso": "SVN", "name": "Slovenia", "final": true },
{ "iso": "ESP", "name": "Spain", "final": true },
{ "iso": "SWE", "name": "Sweden", "final": true },
{ "iso": "CHE", "name": "Switzerland", "final": true },
{ "iso": "UKR", "name": "Ukraine", "final": false },
{ "iso": "GBR", "name": "United Kingdom", "final": true }
]
// Connect to database, and insert all items in the countryList in the countries collection
mongo.connect().then(async () => {
try {
const countries = await mongo.db('eurovision').collection('countries')
const result = await countries.insertMany(countriesList)
console.log(`Added ${result.insertedCount} documents to the collection`)
mongo.close()
} catch(e) {
console.error(e)
}
})Save the file, open your terminal, and run node boilerplate/addCountries.js. Once completed, check your collection in MongoDB Atlas and you should see 42 documents in the countries collection.

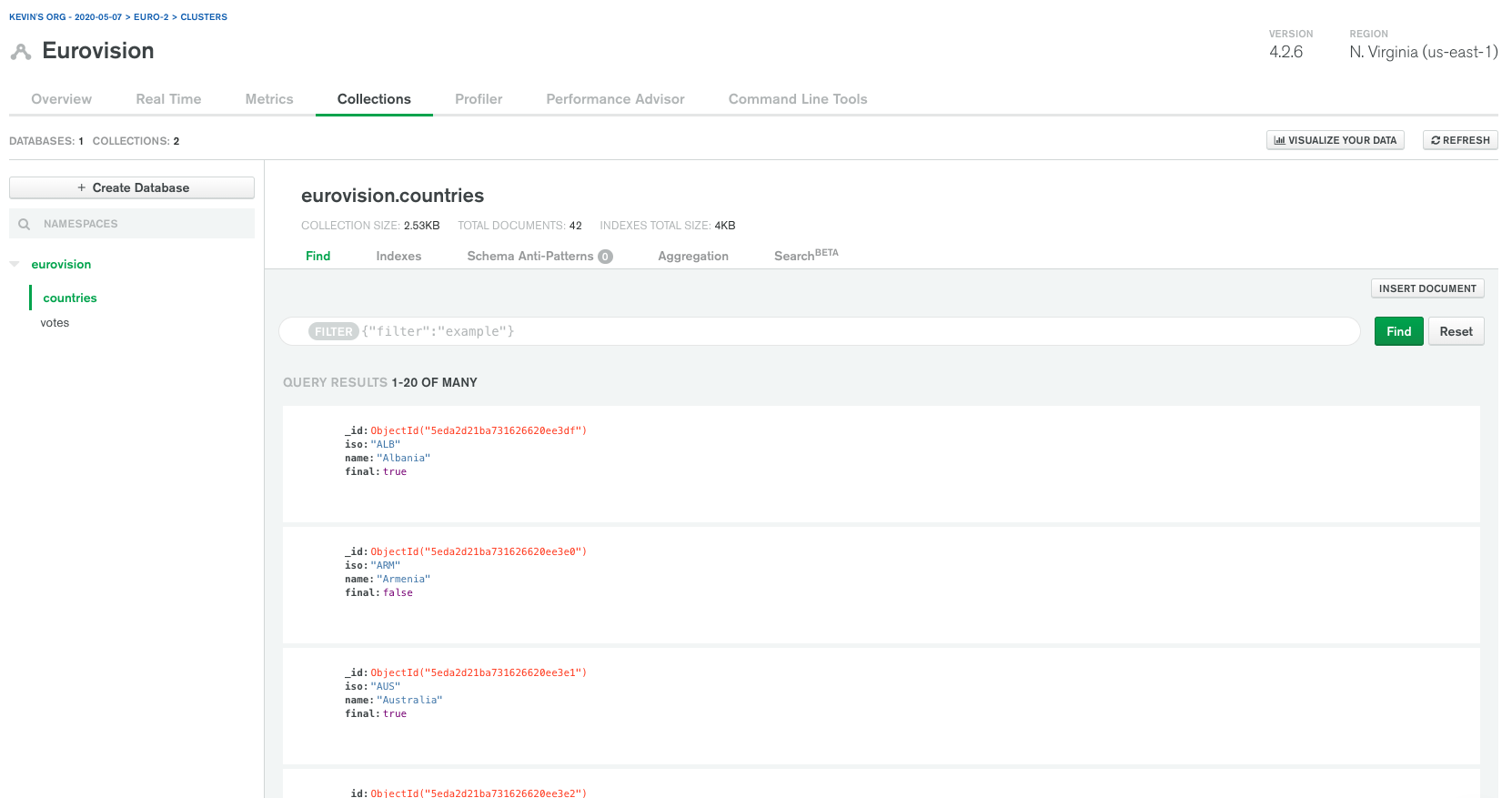

Country entries populated in Atlas
There are two endpoints we need to create for the Vonage API integration. The first is a status endpoint which, for this application, doesn't need any logic but must return a HTTP 200 status. To build and host these endpoints, we'll use Netlify Functions. Before we do, there's some setup required.
In your package.json file, replace the scripts section with the following:
"scripts": {
"netlify:serve": "netlify-lambda serve functions/src",
"netlify:build": "netlify-lambda build functions/src"
},Create a netlify.toml file in your project's root directory and write the following code:
[build]
functions = "./functions/build"Finally, create a functions directory in your project, and inside of it create a src directory. All of our Netlify Functions will be created in this directory.
In the new functions/src directory create a status.js file. In it, create the function:
const headers = {
'Access-Control-Allow-Origin': '*',
'Access-Control-Allow-Headers': 'Content-Type'
}
exports.handler = async (event, context) => {
try {
return { headers, statusCode: 200, body: 'ok' }
} catch(e) {
console.error('Error', e)
return { headers, statusCode: 500, body: 'Error: ' + e }
}
}In the terminal run npm run netlify:serve. In another terminal, try out the new endpoint by running curl http://localhost:9000/status. The terminal should show a response of ok.
We will also require an endpoint to receive data when our Long Virtual Number (LVN) is sent a message. Copy and paste the content of status.js into a new file called inbound.js.
At the top of the file, require the querystring package (built into Node.js):
const qs = require('querystring');At the top of the try block, add the following code:
const { msisdn, to: lvn, text } = qs.parse(event.body)
const vote = text.toUpperCase().trim()
console.log(vote)Restart the netlify-lambda server, open a new terminal, and run npx ngrok http 9000 to create a publicly-accessible version of your netlify-lambda server for testing. Take note of the temporary ngrok URL.
In your project directory, run nexmo app:create:
Application Name: anything you want
Select Capabilities: messages
Messages Inbound URL:
<ngrok_url>/inboundMessages Status URL:
<ngrok_url>/statusPublic/Private: leave blank
This operation creates a .nexmo-app file in your directory. We'll be using it later, but don't share it as it contains your private key. Take note of the new Application ID shown in your terminal (you can also find it in the .nexmo-app file later).
Next, we need to buy and link a LVN with this application. Run:
nexmo number:search GB --smsCopy a number and then run:
nexmo number:buy <number>
nexmo link:app <number> <application_id>
nexmo numbers:update <number> --mo_http_url=<ngrok_url>/inbound
</ngrok_url></number></application_id></number></number>Now the LVN is set up and forwarding requests to the application. Try sending a message to it and see it appear in your terminal.

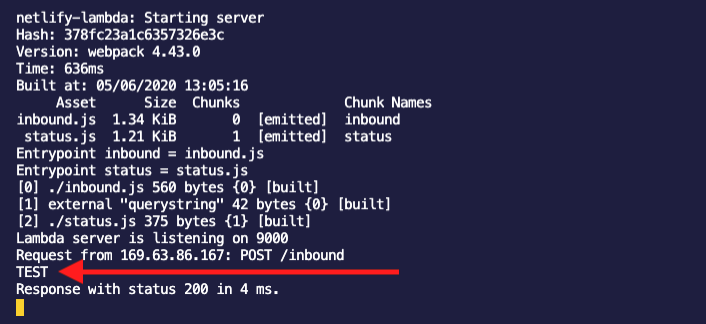

Message logged in terminal
Add the following to the .env for later:
VONAGE_KEY=<your_api_key>
VONAGE_SECRET=<your_api_secret>
VONAGE_APP=<your_application_id>
VONAGE_PRIVATE_KEY=<your_private_key>
</your_private_key></your_application_id></your_api_secret></your_api_key>You can find your application's private key in the .nexmo_app file.
At the very top of inbound.js, require and initialize MongoClient:
require('dotenv').config()
const { MongoClient } = require('mongodb')
const mongo = new MongoClient(process.env.DB_URL, { useUnifiedTopology: true })Below the console.log(vote) statement, connect to the database and push a new entry into the collection to test it's working:
await mongo.connect()
const votes = await mongo.db('eurovision').collection('votes')
const countries = await mongo.db('eurovision').collection('countries')
await votes.insertOne({ msisdn, lvn, vote })Wait for your netlify-lambda server to restart automatically and send another message to your LVN. If you check your votes collection in Atlas, a new document should appear.
The Vonage Number Insights API will, given a phone number (MSISDN), provide insights about it. There are three tiers—basic, standard and advanced. For this application, we want to know a number's country of origin, which is returned as part of a basic lookup.
Just above where the headers are defined, require and initialize the Nexmo node client library:
const Nexmo = require('nexmo')
const nexmo = new Nexmo({
apiKey: process.env.VONAGE_KEY,
apiSecret: process.env.VONAGE_SECRET,
applicationId: process.env.VONAGE_APP,
privateKey: Buffer.from(process.env.VONAGE_PRIVATE_KEY.replace(/\\n/g, "\n"), 'utf-8')
})Note: We must create a Buffer and replace \n for this application to work once hosted on Netlify. In non-Netlify hosted applications, you can provide this directly as process.env.VONAGE_PRIVATE_KEY.
At the very bottom of the file, create a new function to get the country code from a number:
function getCountryCodeFromNumber(number) {
return new Promise((resolve, reject) => {
nexmo.numberInsight.get({level: 'basic', number}, async (err, res) => {
if(err) reject(err)
else resolve(res.country_code_iso3)
})
})
}There are other pieces of information that the Number Insights API will return. For this application, we only require the 3 digit ISO code associated with the phone number. This ISO code is also stored against every participating country in our countries collection.
Above the votes.insertOne() statement add:
const votersCountry = await getCountryCodeFromNumber(msisdn)
console.log(votersCountry)Send another message to your LVN. The country code should be logged in the terminal.
When we receive a message, we should respond to the user and let them know. At the very bottom of your application add a function to do this:
function sendMessage(sender, recipient, text) {
return new Promise((resolve, reject) => {
const to = { type: 'sms', number: recipient }
const from = { type: 'sms', number: sender }
const message = { content: { type: 'text', text } }
nexmo.channel.send(to, from, message, (err, res) => {
if(err) reject(err)
resolve({ headers, statusCode: 200, body: 'ok' })
})
})
}We can now use the function to send a message to users, and then return its value directly. Replace the return statement in the try {} block with our new function call:
return await sendMessage(lvn, msisdn, 'Thank you for voting!')Send a message to your LVN and you should receive a response.
We don't want to store every vote that is sent to us. There are some checks that are required for it to be valid. Below the votersCountry variable, create the checks:
const existingVote = await votes.findOne({ msisdn: msisdn })
const countryInFinal = await countries.findOne({ iso: vote, final: true })
const votersCountryCanVote = await countries.findOne({ iso: votersCountry })
if(existingVote) {
return await sendMessage(lvn, msisdn, 'You have already voted')
}
if(!countryInFinal) {
return await sendMessage(lvn, msisdn, 'That country is not in the final, or your message is not a valid country code.')
}
if(!votersCountryCanVote) {
return await sendMessage(lvn, msisdn, 'Your number is not from a participating country')
}
if(votersCountry == vote) {
return await sendMessage(lvn, msisdn, 'You cannot vote for your own country')
}Change the object inside of votes.insertOne() to include the information we want to store:
votes.insertOne({ msisdn, vote, votersCountry })As there are return statements in the if statements, the vote will only be inserted if none of the conditions are met, meaning it is valid.
Our voting system is now complete. However, to build results endpoints, we'll need thousands of votes. Like before, here is a script that will add 20k votes. Add this code in a new addVotes.js file in the boilerplate directory:
require('dotenv').config()
const { MongoClient } = require('mongodb')
const mongo = new MongoClient(process.env.DB_URL, { useUnifiedTopology: true })
mongo.connect().then(async () => {
try {
const countries = await mongo.db('eurovision').collection('countries')
const votes = await mongo.db('eurovision').collection('votes')
const list = await countries.find().toArray()
const votesList = []
for(let i=0; i<20000; i++) {
const { iso: votersCountry } = list[Math.floor(Math.random() * list.length)]
const availableCountries = list.filter(c => c != votersCountry && c.final)
const { iso: vote } = availableCountries[Math.floor(Math.random() * availableCountries.length)]
votesList.push({
msisdn: String(Math.ceil(Math.random() * 100000)),
votersCountry, vote
})
}
const result = await votes.insertMany(votesList)
console.log(`Added ${result.insertedCount} documents to the collection`)
mongo.close()
} catch(e) {
console.error(e)
}
})Delete your existing documents, and then run this script 5 or 6 times. Your MongoDB Atlas database should now have plenty of sample votes.

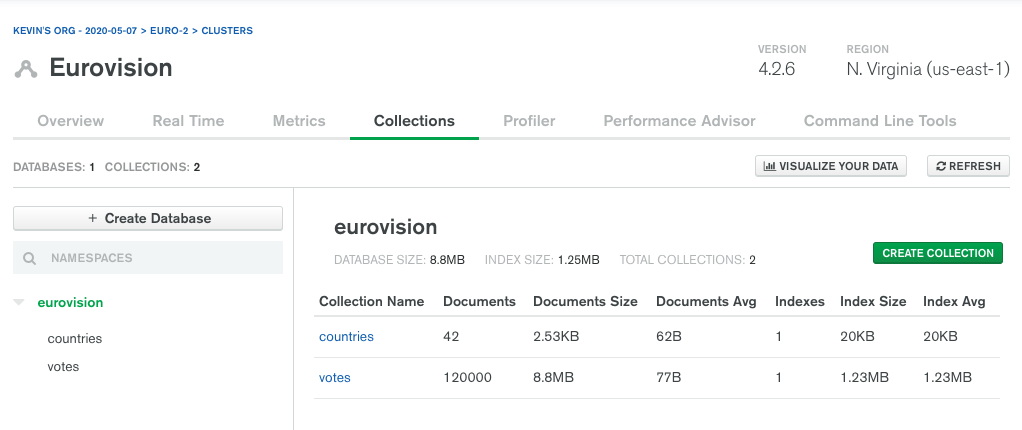

12000 records in the votes collection
There are a few moving parts in our front-end—we need an endpoint to return countries to populate the dropdown, and an endpoint to return a given country's scores.

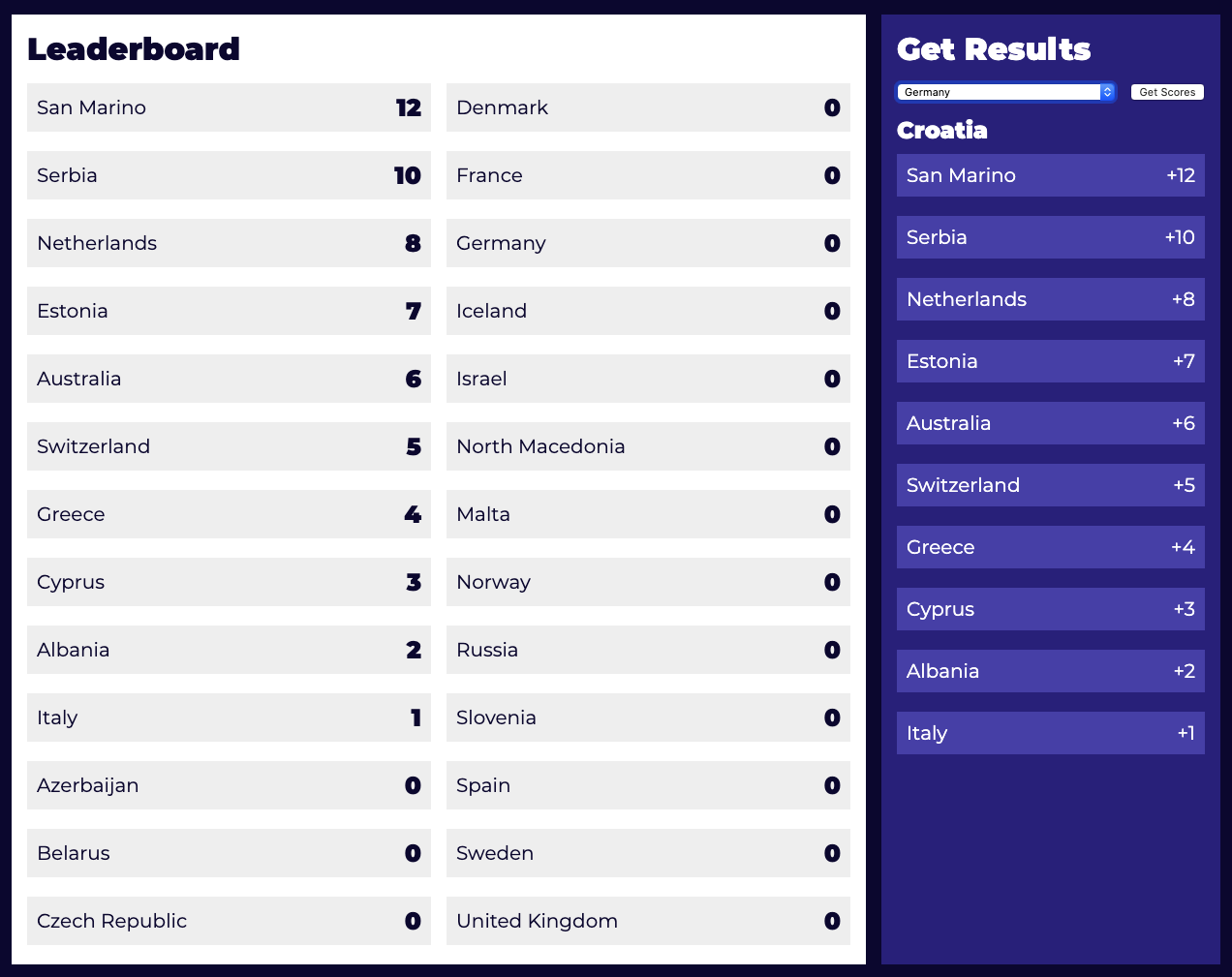

Completed dashboard
Create a new file in /functions/src/countries.js:
require('dotenv').config()
const { MongoClient } = require('mongodb')
const mongo = new MongoClient(process.env.DB_URL, { useUnifiedTopology: true })
const headers = {
'Access-Control-Allow-Origin': '*',
'Access-Control-Allow-Headers': 'Content-Type'
}
exports.handler = async (event, context) => {
try {
await mongo.connect()
const countries = await mongo.db('eurovision').collection('countries')
const list = await countries.find().toArray()
return { headers, statusCode: 200, body: JSON.stringify(list) }
} catch(e) {
console.error('Error', e)
return { headers, statusCode: 500, body: 'Error: ' + e }
}
}Restart your netlify-lambda server and then try it by running curl http://localhost:9000/countries.
This endpoint will accept a query parameter of ?country=CODE. Copy and paste the countries endpoint code into a new file called results.js. Replace the content of the try {} block with the following:
await mongo.connect()
const countries = await mongo.db('eurovision').collection('countries')
const votes = await mongo.db('eurovision').collection('votes')
const { country } = event.queryStringParameters
const topTen = await votes.aggregate([
{ $match: { votersCountry: country } },
{ $group: { _id: '$vote', votes: { $sum: 1 } } },
{ $sort: { votes: -1 } },
{ $limit: 10 }
]).toArray()
const points = [ 12, 10, 8, 7, 6, 5, 4, 3, 2, 1 ]
const list = await countries.find().toArray()
const results = topTen.map((votes, i) => {
const countryRecord = list.find(c => c.iso == votes._id)
return {
...votes,
points: points[i],
country: countryRecord.name
}
})
return { headers, statusCode: 200, body: JSON.stringify(results) }The topTen variable uses a MongoDB aggregation to return the top 10 entries as voted by the provided country. We then add a points value to each of the entries with their given point value in the points array.
Restart the server, and run curl http://localhost:9000/results?country=GBR to test.
Create a new file at the project root called index.html:
<meta charset="UTF-8">
<meta name="viewport" content="width=device-width, initial-scale=1.0">
<title>Eurovision Results Pane</title>
<link rel="stylesheet" href="style.css">
<div id="app">
<div id="leaderboard">
<h1>Leaderboard</h1>
<div class="list">
<div class="country" v-for="country in leaderboard">
<span class="name">{{country.name}}</span>
<span class="score">{{country.score}}</span>
</div>
</div>
</div>
<div id="admin">
<h1>Get Results</h1>
<form>
<select v-model="toReveal">
<option disabled="" value="">Select country</option>
<option v-for="country in leftToReveal" :value="country.iso">{{country.name}}</option>
</select>
<input type="submit" @click.prevent="getScores" value="Get Scores">
</form>
<div id="results">
<h2>{{resultsCountry}}</h2>
<div class="result" v-for="result in results">
<span class="name">{{result.country}}</span>
<span class="points">+{{result.points}}</span>
</div>
</div>
</div>
</div>
<script src="https://cdn.jsdelivr.net/npm/vue"></script>
<script src="client.js"></script>Create a style.css file in the project root:
@import url('https://fonts.googleapis.com/css2?family=Montserrat:wght@400;900&display=swap');
* { margin: 0; padding: 0; box-sizing: border-box; }
body { background: #050636; font-family: 'Montserrat', sans-serif; }
#app { display: grid; grid-template-columns: auto 350px; grid-gap: 1em; padding: 1em; }
#leaderboard { background: white; color: #050636; padding: 1em 1em 0; }
.list { columns: 2; column-gap: 1em; margin-top: 1em; }
.country, .result { padding: 0.5em; background: #f0f0f0; margin-bottom: 1em; width: 100%; display: flex; flex-direction: row; justify-content: space-between; font-size: 1.25em; align-items: center; }
.score { font-size: 1.25em; font-weight: bold; }
#admin { background: #2a2b87; color: white; padding: 1em; }
form { display: grid; grid-template-columns: 225px auto; grid-gap: 1em; }
form { margin: 1em 0; }
.result { background: #4c4eb3; margin-top: 0.5em; }Create a client.js file in the project root:
const app = new Vue({
el: '#app',
async created() {
const countryResp = await fetch(this.baseURL + '/countries');
const countries = await countryResp.json();
this.countries = countries.map(country => {
return { ...country, results: false, score: 0 }
})
},
data: {
countries: [],
toReveal: undefined,
results: undefined,
resultsCountry: undefined
},
computed: {
leaderboard() {
return this.countries.filter(c => c.final).sort((a, b) => b.score - a.score)
},
leftToReveal() {
return this.countries.filter(c => !c.results)
},
baseURL() {
return "http://localhost:9000"
},
toRevealCountry() {
const country = this.countries.find(c => c.iso == this.toReveal)
return country.name
}
},
methods: {
async getScores() {
// Get results
const resultsResp = await fetch(this.baseURL + '/results?country=' + this.toReveal);
this.results = await resultsResp.json();
// Assign points to countries
for(let result of this.results) {
const country = this.countries.find(c => c.iso == result._id)
country.score += result.points
}
// Remove item from results select
const votingCountry = this.countries.find(c => c.iso == this.toReveal)
votingCountry.results = true
// Show country name in results pane
this.resultsCountry = votingCountry.name
}
}
})Some key things to note:
In
created()we add two properties to every country—an initial score of 0, and aresultsproperty which we set to true once we've got results for that country.The
leftToRevealcomputed property only includes countries who haveresultsset totrue, so we can't accidentally double-count a country.
This is a pretty good, fairly robust system. One place we can improve it is persisting scores between refreshes (should this happen while presenting results).
At the bottom of the getScores() method add the countries data to localStorage:
localStorage.setItem('countries', JSON.stringify(this.countries))Update created() to only fetch fresh country data if we don't have any in localStorage:
async created() {
if(localStorage.getItem('countries')) {
this.countries = JSON.parse(localStorage.getItem('countries'))
} else {
const countryResp = await fetch(this.baseURL + '/countries');
const countries = await countryResp.json();
this.countries = countries.map(country => {
return { ...country, results: false, score: 0 }
})
}
},
Create a new file in your project root called.gitignore. The files and directories listed in this file won't be included in a git repository. Your file should look like this:
node_modules
functions/build
.env
.nexmo-appPush this repository to GitHub and then log in to your Netlify account. Click New site from Git, pick the repository and in the Basic build settings the Build command should be npm run netlify:build. In the Advanced build settings add each item in your .env file.
Once deployed, there are two changes you'll need to make:
Update your URLs in your Vonage API Application to
<netlify_url>/.netlify/functions/status(or/inbound).In
client.jsupdate yourbaseURLmethod to the following:
baseURL() {
if(location.hostname == 'localhost' || location.hostname == "127.0.0.1") {
return "http://localhost:9000"
} else {
return "<netlify_url>/.netlify/functions"
}
},
</netlify_url>Push a new commit and your Netlify site will re-deploy automatically.
There are quite a few moving parts in this application. However, each part does its job to create a Eurovision voting system that actually works.
You can get multiple LVNs from different countries using the Nexmo CLI or through the web dashboard. Users will still only be able to vote once regardless of which LVN they message. One improvement you may wish to make is to shut down the voting window so all countries have the same period to vote.
You can find the final project at https://github.com/nexmo-community/eurovision-voting-system-js
As ever, if you need any support feel free to reach out in the Vonage Developer Community Slack. We hope to see you there.
Iceland had the best 2020 entry, by the way.
){kind=small}
Former Developer Advocate for Vonage, where his role was to support the local tech community in London. He’s an experienced events organiser, boardgamer and dad to a cute little dog called Moo. He’s also the lead organizer for You Got This - a network of events on the core skills needed for a happy, healthy work life.
